34 00 010 Checking thickness of brake lining
WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see BRAKES - SPECIAL TOOLS - 5-SERIES (E60) .
Special Tools Required:
- 34 1 260
NOTE:
The thickness of the outer brake linings can be determined without removing the wheels. If necessary, move car until opening for brake lining wear indicator (brake lining) can be seen through rim styling.

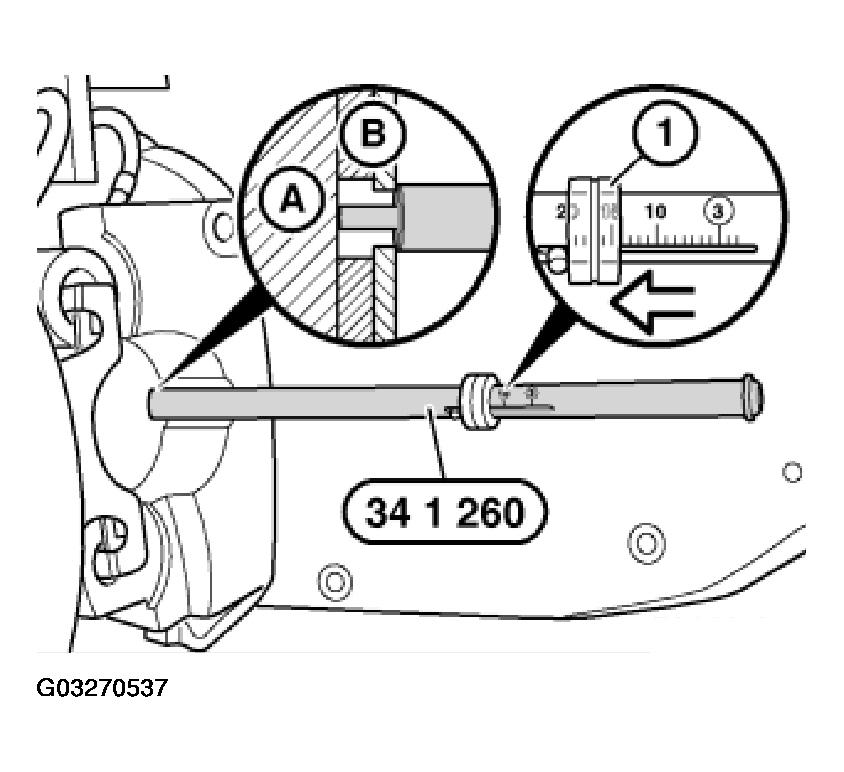

Insert special tool 34 1 260 through rim into opening for brake lining wear indicator.
Press special tool onto brake lining. Slide ring (1) in direction of arrow up to stop and read off measured value.
NOTE:
- Brake disc.
- Brake lining with backplate.
Safe limit for lining wear, front brake. Refer to BRAKES - TECHNICAL DATA - 5-SERIES (E60) .
Safe limit for lining wear, rear brake. Refer to BRAKES - TECHNICAL DATA - 5-SERIES (E60) .
