34 32 881 Replacing front left or right brake hoses

WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: After completing tasks, bleed brake system. Refer to 34 00 025 REPLACING FLUID IN ABS/ASC+T BRAKE SYSTEM .

Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from emerging from the expansion tank when the brake lines are opened.

Fig 1: Securing Pedal Using Pedal Prop

Courtesy of BMW OF NORTH AMERICA, INC.

Pull brake hose out of holder (1).

Detach brake hose from brake line (2).

Installation:

Tightening torque, refer to 34 32 1AZ in BRAKES - TIGHTENING TORQUES - E60 .

IMPORTANT: Grip brake hose at square head (3) so that connecting piece cannot rotate in retaining bracket.

Detach brake hose from brake caliper (4).

Tightening torque, refer to 34 32 4AZ in BRAKES - TIGHTENING TORQUES - E60 .

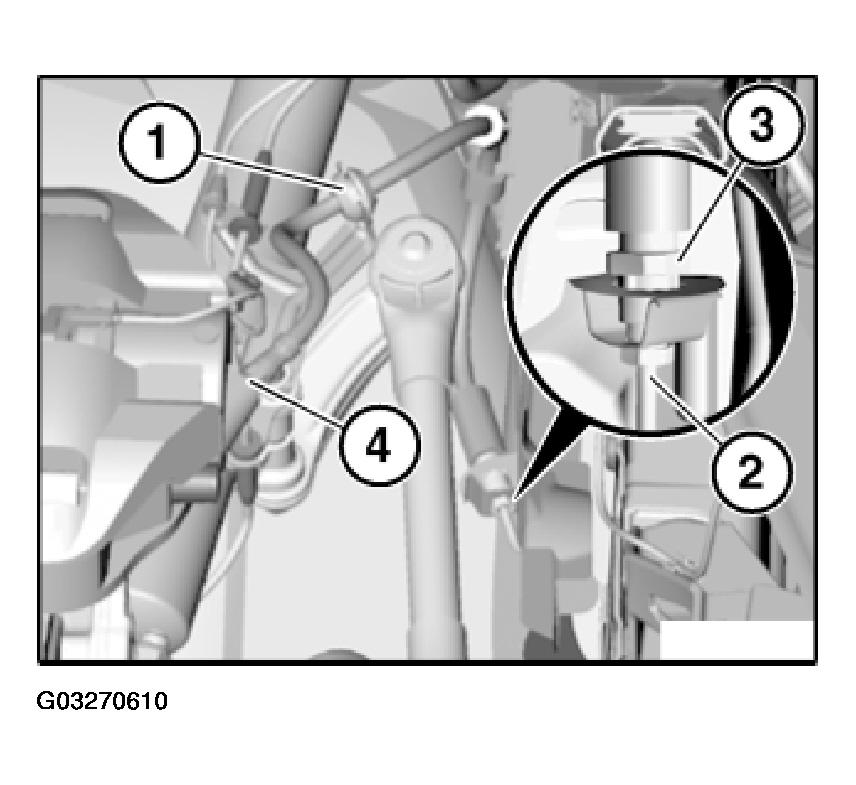

Fig 2: Removing Brake Hose From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

First tighten brake hose on brake caliper.

Move wheels into straight-ahead position.

Insert brake hose in bracket and screw onto brake pipe.

IMPORTANT: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
