32 32 170 Removing and installing / replacing interlock cable (vehicles up to 09/2005)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim for storage tray. Refer to 51 16 211 REMOVING AND INSTALLING/REPLACING FINISHER FOR STORAGE TRAY .
Remove front insert for ashtray.

After installation:

Adjusting interlock cable. Refer to INTERLOCK CABLE .

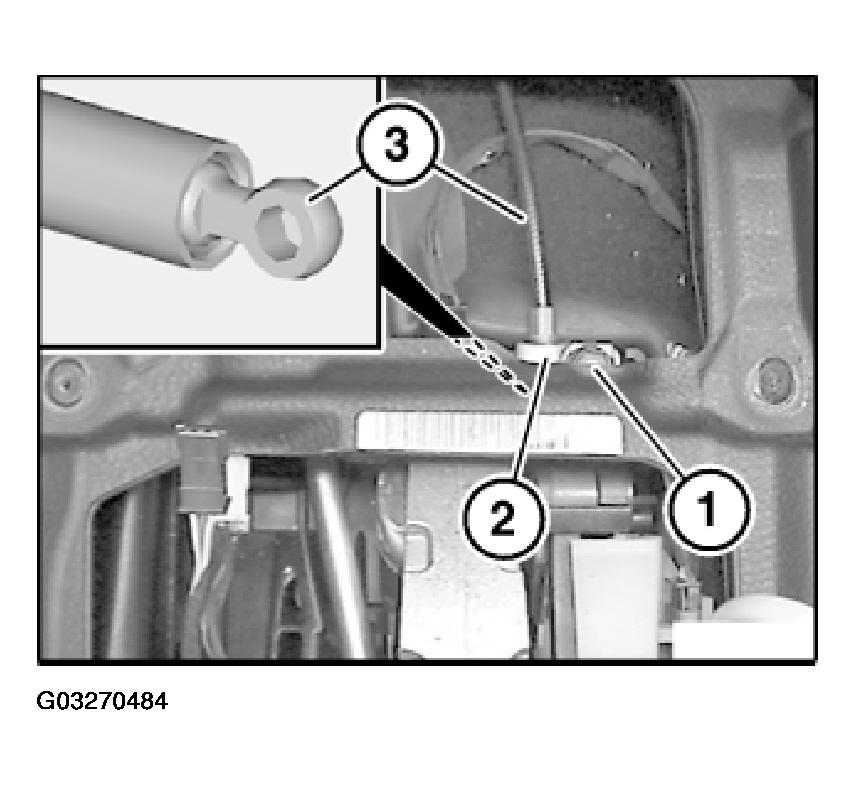

Release screw (1) and remove bracket (2).

Move interlock cable (3) to left and then remove towards front.

If necessary, secure cord/cable to interlock cable (3).

Fig 1: View Of Interlock Cable Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not kink interlock cable.

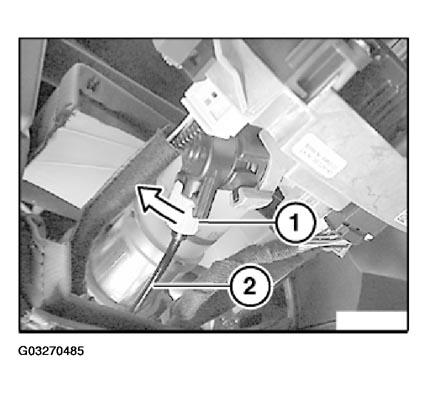

Turn guide sleeve (1) through approx. 45°.

Remove interlock cable (2) from steering column and pull out.

If necessary, remove cord/wire from interlock cable (2).

Fig 2: Identifying Guide Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Tie cord/wire to end of new interlock cable.
