32 41... Instructions for removing and installing ear clips

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

32 1 260

NOTE: The work steps are show on assorted components. Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

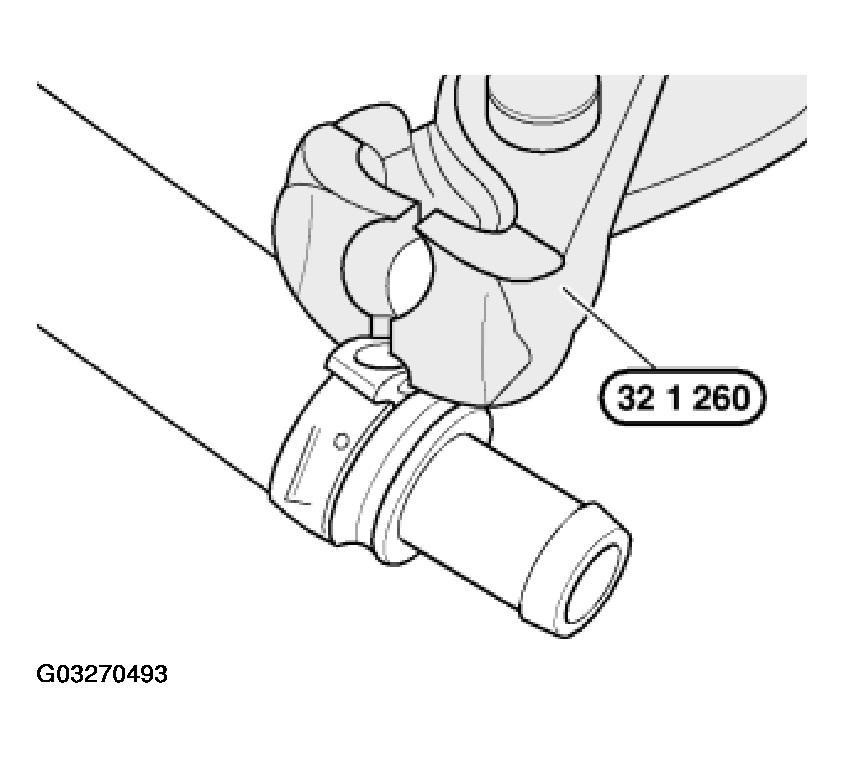

Fig 1: Cutting Ear Using Pliers (32 1 260)

G03270493

Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

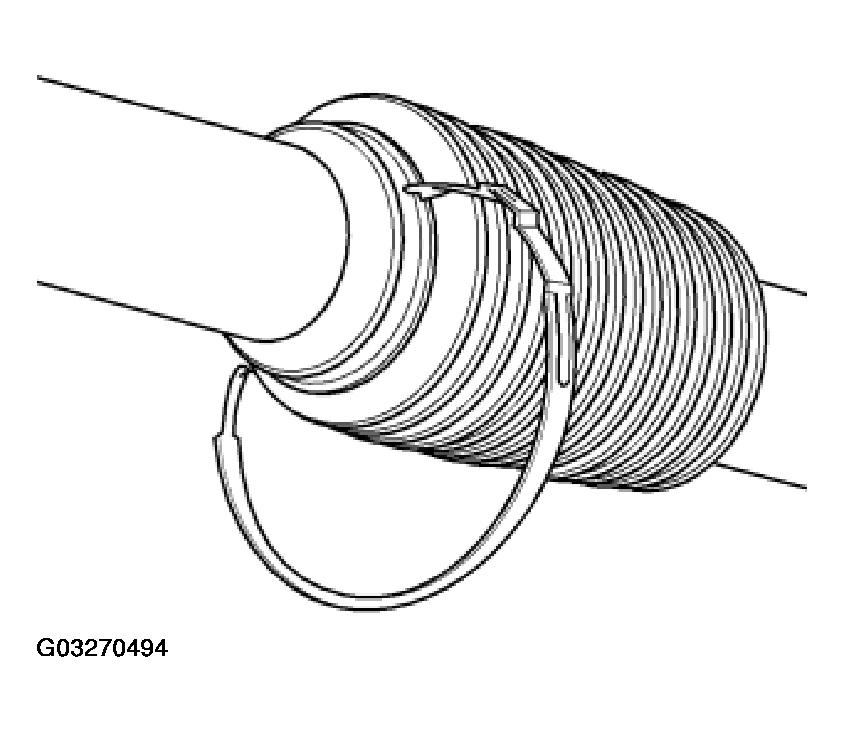

Fig 2: View Of Ear Clip

G03270494

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260.

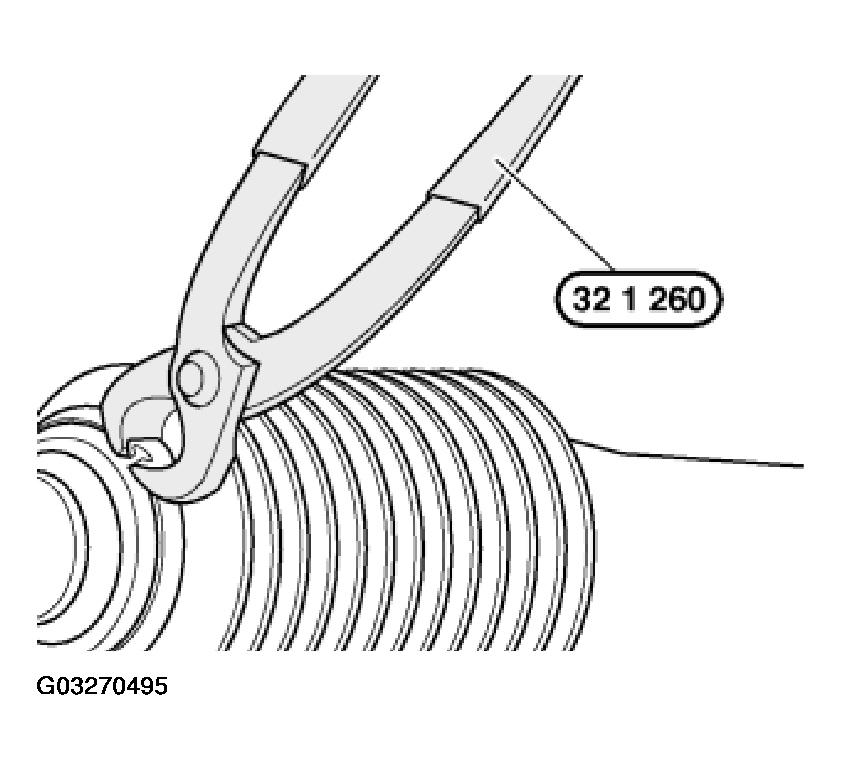

Fig 3: Attaching Hook Fastener Using Pliers

G03270495

Courtesy of BMW OF NORTH AMERICA, INC.

Side cutter of special tool 32 1 260 can be used in areas which are difficult to access.

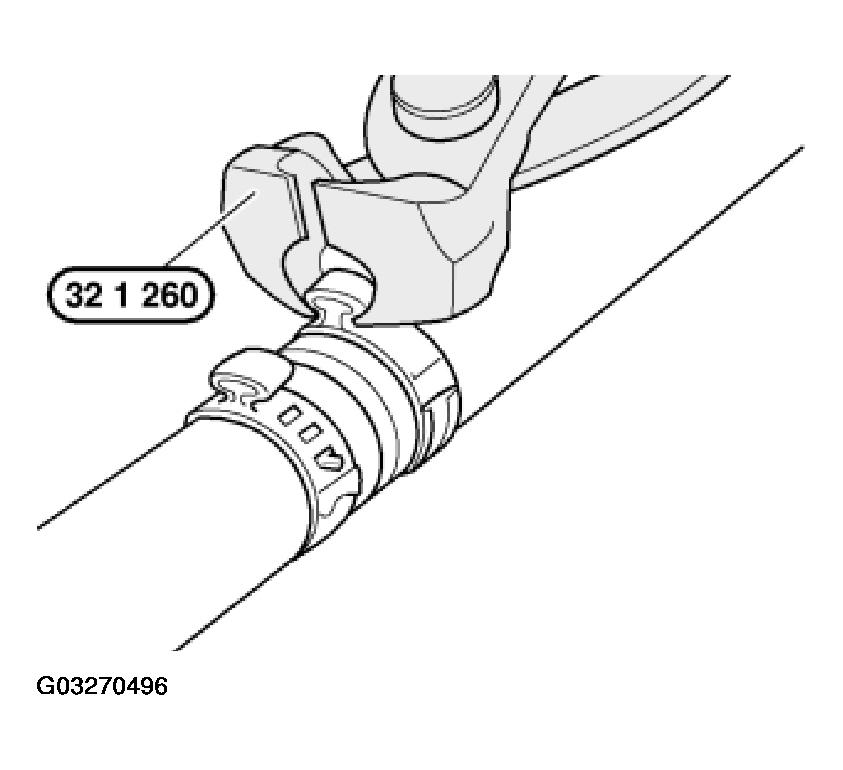

Fig 4: Identifying Side Cutter Of Pliers (32 1 260)

G03270496

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Gap (A) max. 1 mm!

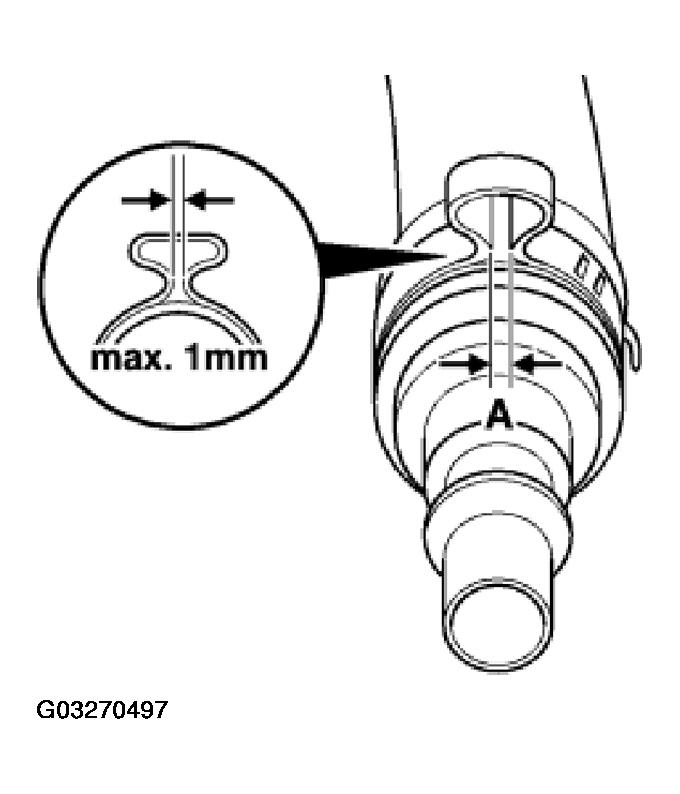

Fig 5: Identifying Gap (A)

G03270497

Courtesy of BMW OF NORTH AMERICA, INC.
