32 41 100 Removing and installing/replacing belt pulley on vane pump for power steering
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Carry out preliminary work as described in 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N62/N62TU)
.

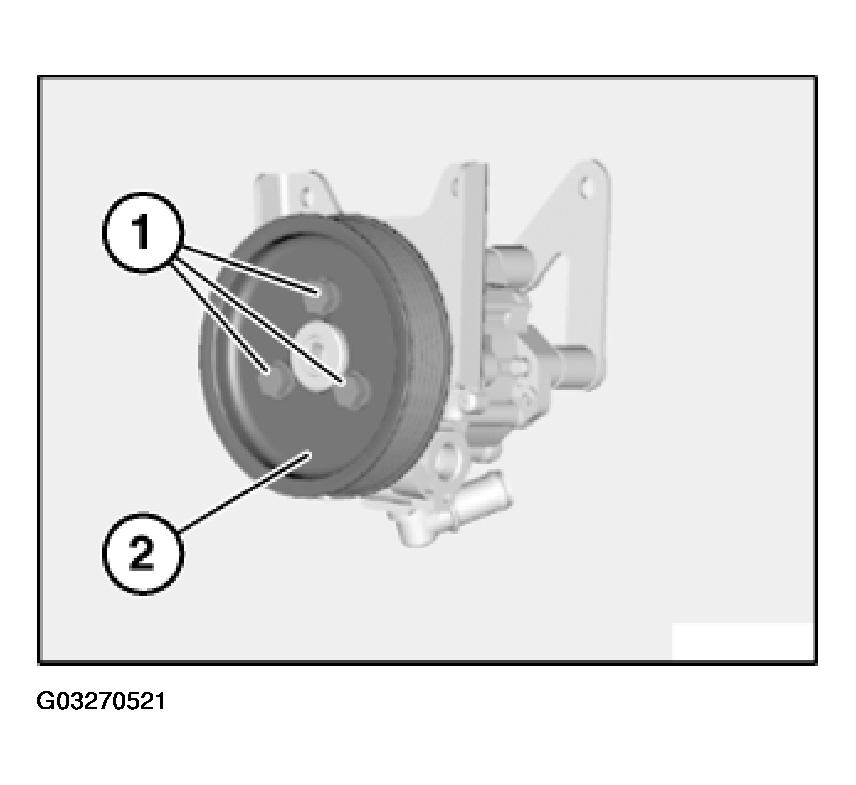

Slacken bolts (1).
Relieve tension on drive belt and remove from belt pulley (2). Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N62/N62TU) .
Unscrew bolts (1) and remove belt pulley (2).
Installation:
Lettering on belt pulley (2) must point forwards.
Installation:
Tightening torque, (22 N.m.).
