33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

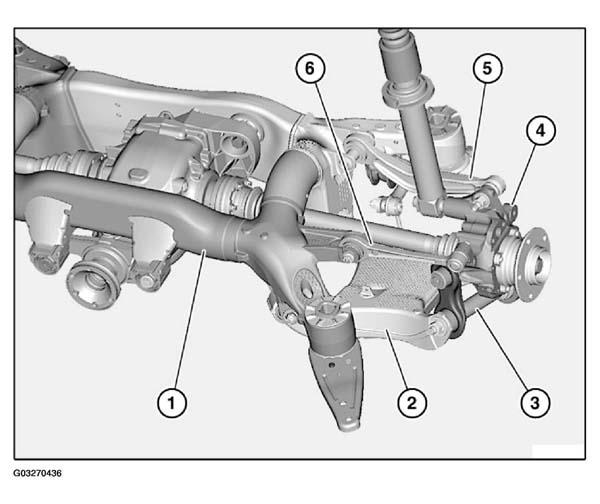

Fig 1: Identifying Components Of Rear Axle

Courtesy of BMW OF NORTH AMERICA, INC.

A wheel/chassis alignment check must be carried out after the following work: (refer to 32 00 150 STANDARD CHASSIS / WHEEL ALIGNMENT WITH DIN LOAD and 32 00 155 CHASSIS / WHEEL ALIGNMENT WITHOUT LOAD

Release of following screw/bolt connections:
- Swinging arm, front/rear, to rear axle carrier.
- Guide arm to rear axle carrier.
- Control arm to rear axle carrier.
Replacement of following parts:
1. Rear axle carrier.
2. Swinging arm.
3. Integral link.
4. Wheel carrier / ball joint.
5. Control arm.
6. Guide arm.
