32 00 620 Adjusting rear axle
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A camber change always means a toe change as well. The camber must therefore be adjusted first.

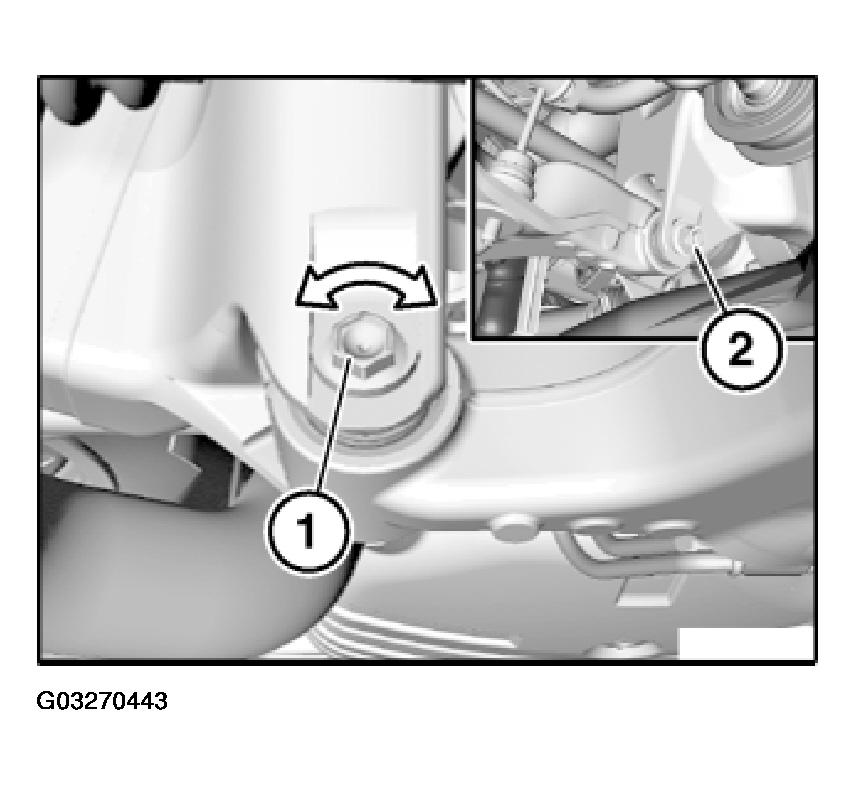

Adjusting Camber:
Replace nut (2) and tighten to 5 N.m.
Turn eccentric bolt (1) to adjust camber to setpoint value.
Tighten nut (2).
Tightening torque, front (100 N.m.), rear M14 (165 N.m.).

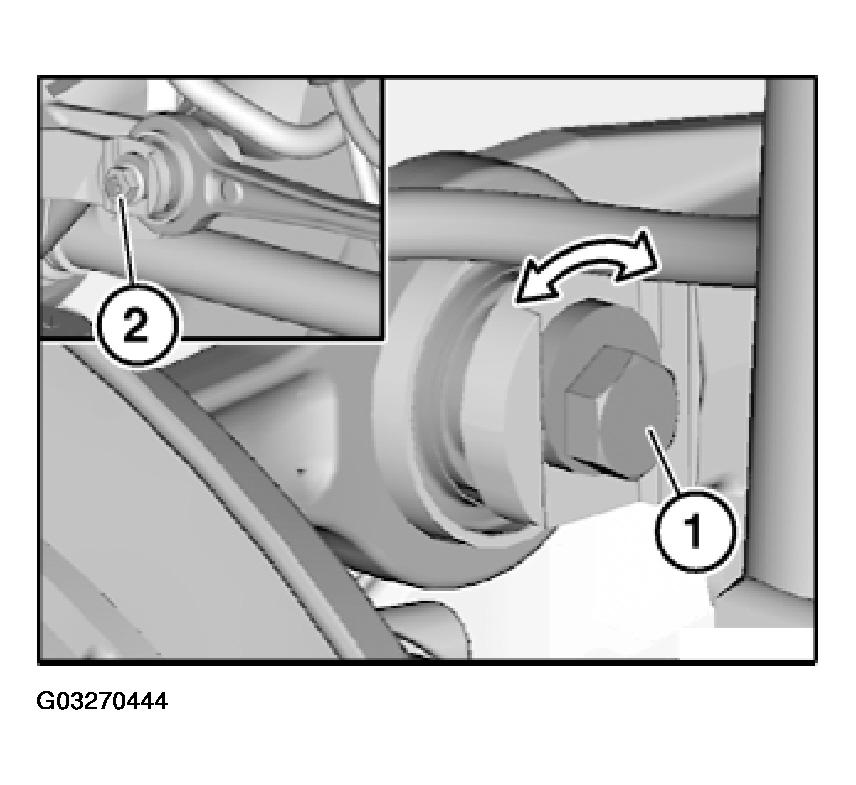

Adjusting Toe:
Replace nut (2) and tighten to 5 N.m.
Turn eccentric bolt (1) to adjust toe to specified value.
Tighten nut (2).
Tightening torque, (65 N.m.).
