32 00 610 Adjusting toe-in and camber on front axle

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!
NOTE: Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure. The centering pin may only be driven or twisted out if the camber is outside the specified tolerance after toe adjustment.

Version with active front steering:

IMPORTANT: Once the special tool 32 4 150 has been fitted, the cumulative steering angle must still be set to "zero"!

Version without active front steering:

If necessary, remove steering gear cover at side.

Move steering into straight-ahead position by means of markings on cap (1) and steering gear (2).

Slacken clamping nut (2), gripping tie rod end (1) in the process.

Align steering wheel and secure with steering wheel arrester.

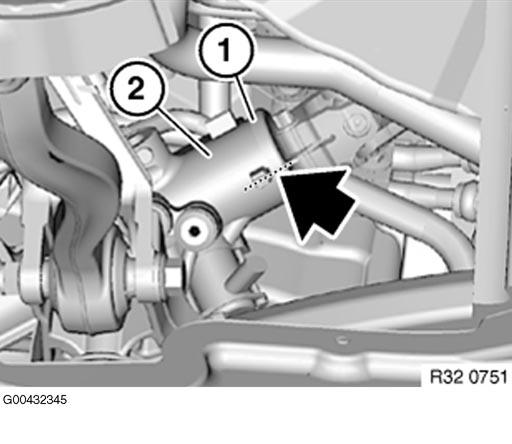

Fig 1: Locating Markings On Cap
G00432345Courtesy of BMW OF NORTH AMERICA, INC.

Adjust Toe-In:

Clean thread on tie rod.

Slacken clamping nut (2), gripping tie rod end (1) in the process.

Remove clamp (4).

Adjusting procedures:

  1. Turn tie rod (3) to adjust toe-in to specified value.
  2. Check cumulative steering angle; if necessary, set to "zero".
  3. Check toe values; if necessary, repeat adjustment procedure.

Tighten down clamping nut (2).

Tightening torque, (51 N.m.).

Fit clamp (4).

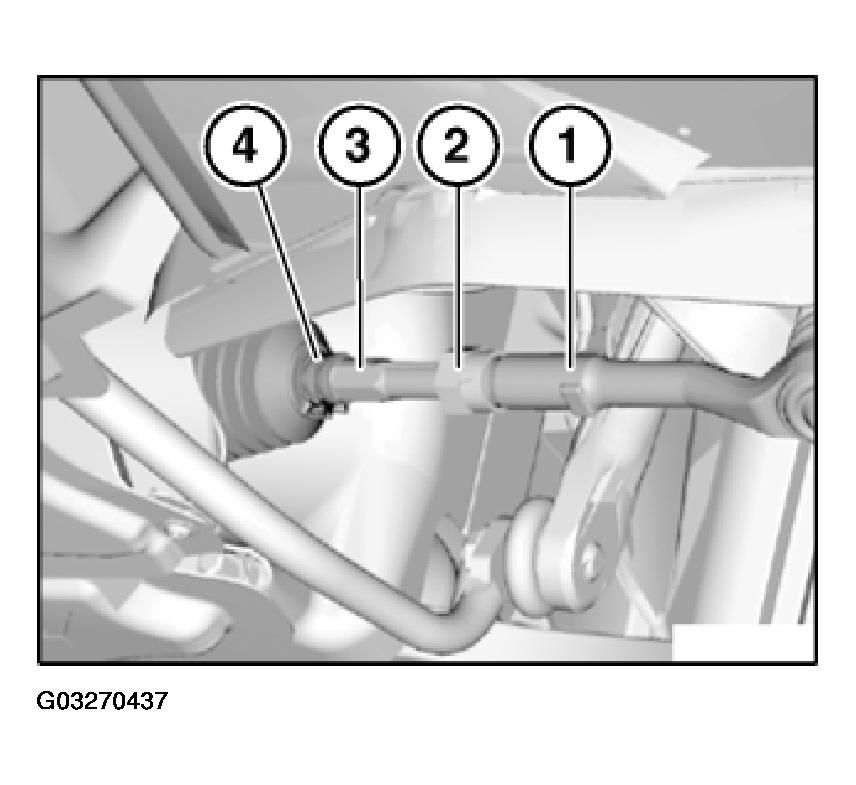

Fig 2: Identifying Tie Rod Components
G03270437Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting Camber:

M5:

Disconnect connector (2).

Unclip connecting cable (1) from spring strut dome cover (3).

Detach connecting cable (1) from front spring strut.

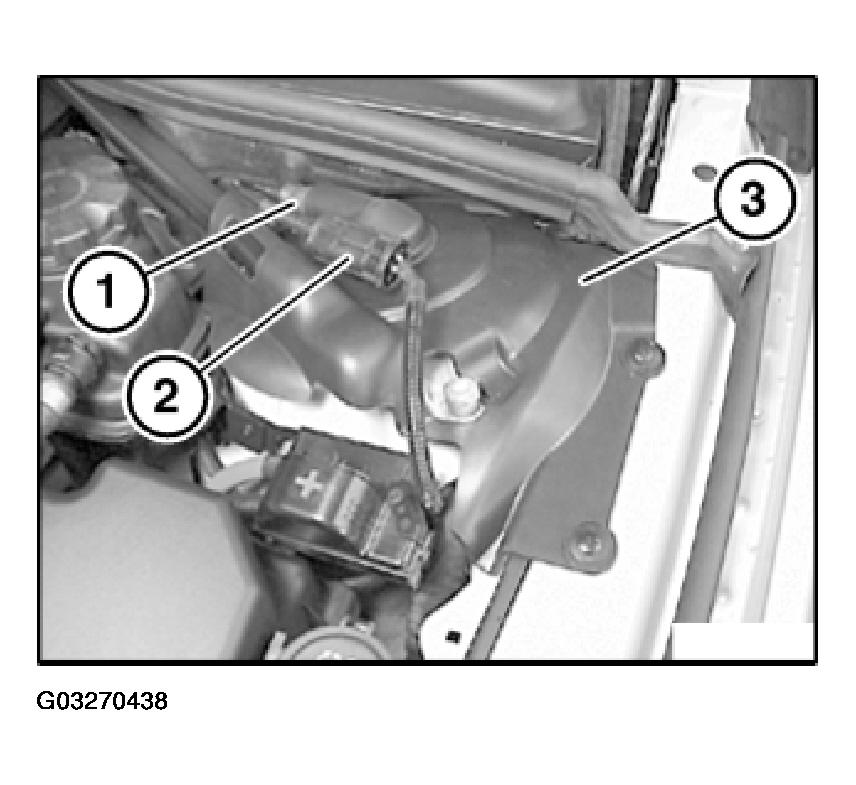

Fig 3: View Of Spring Strut Dome Cover And Cable
G03270438Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release expander rivet (1).

If necessary, unclip spring strut dome cover (2) from front cross-strut.

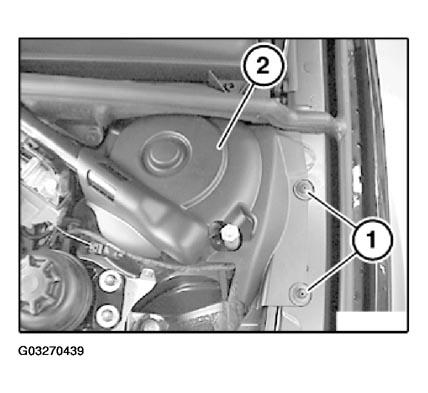

Fig 4: Identifying Expander Rivet And Spring Strut Dome Cover
G03270439Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove protective cap.

Knock out centering pin (1) in downwards direction.

Clean wheel arch from below in area of support bearing with compressed air.

Slacken nut (2) approx. 1 to 1.5 turns.

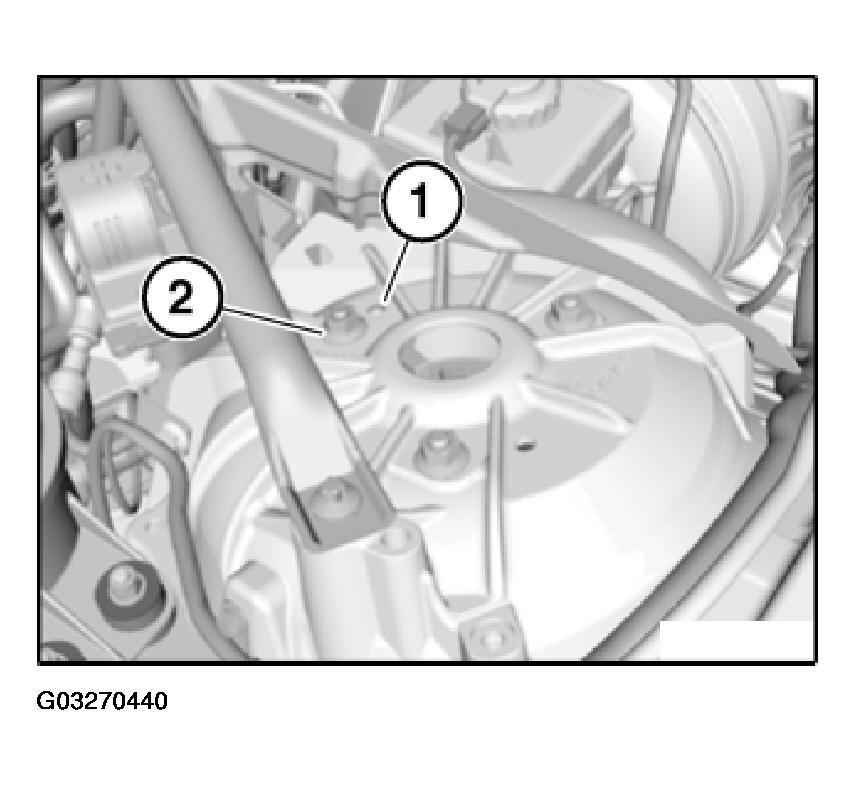

Fig 5: Identifying Knock Out Centering Pin And Nut
G03270440Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 32 3 190 into wheel arch opening and over nut.

Replace nuts (3) and screw on but do not tighten down fully.

Adjusting procedures:

  1. Turn nut (4) in special tool 32 3 190 to adjust camber to specified value.
  2. Check cumulative steering angle; if necessary, set to "zero".
  3. Check camber values; if necessary, repeat adjustment procedure.

Tighten down nuts (3).

Tightening torque, (34 N.m.).

Remove special tool 32 3 190.

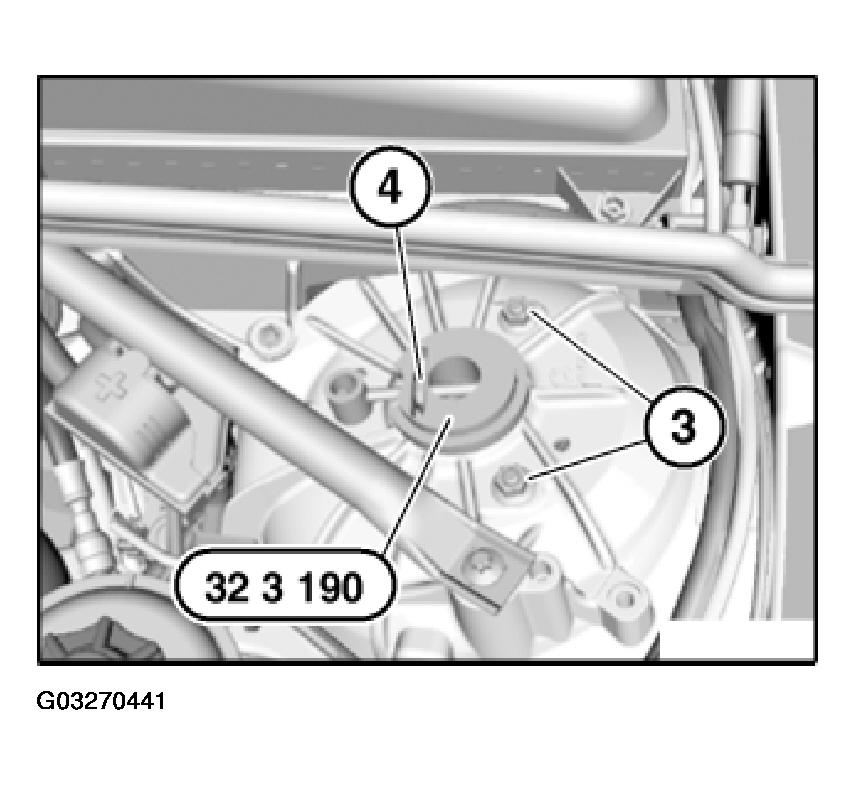

Fig 6: View Of Setting Tool In Wheel Arch Opening
G03270441Courtesy of BMW OF NORTH AMERICA, INC.

Replace nut (2) and tighten down.

Tightening torque, (34 N.m.).

Fig 7: Identifying Retaining Nuts
G03270442Courtesy of BMW OF NORTH AMERICA, INC.

After Installation:
