61-0304 Holding sleeve

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

0495386 610304 Holding sleeve MP

NOTE: (Replacement sleeve (D=2.5)) From 09/2005 replaces special tool 61 1 156 [Released]

Storage Location

M22 x 205

SI number

02 05 05 (217)

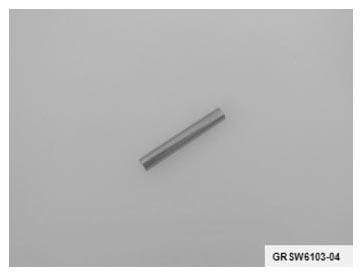

Fig 1: Identifying Holding Sleeve (0495386)
G08465615Courtesy of BMW OF NORTH AMERICA, INC.
