Removing radiator cover

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Illustrations Show M54:

IMPORTANT: Do not place front panel center section (2) on jump start terminals. Do not kink Bowden cables for engine hood locking.

Release screws (1).

Remove front panel center section (2) in direction of arrow and place to one side.

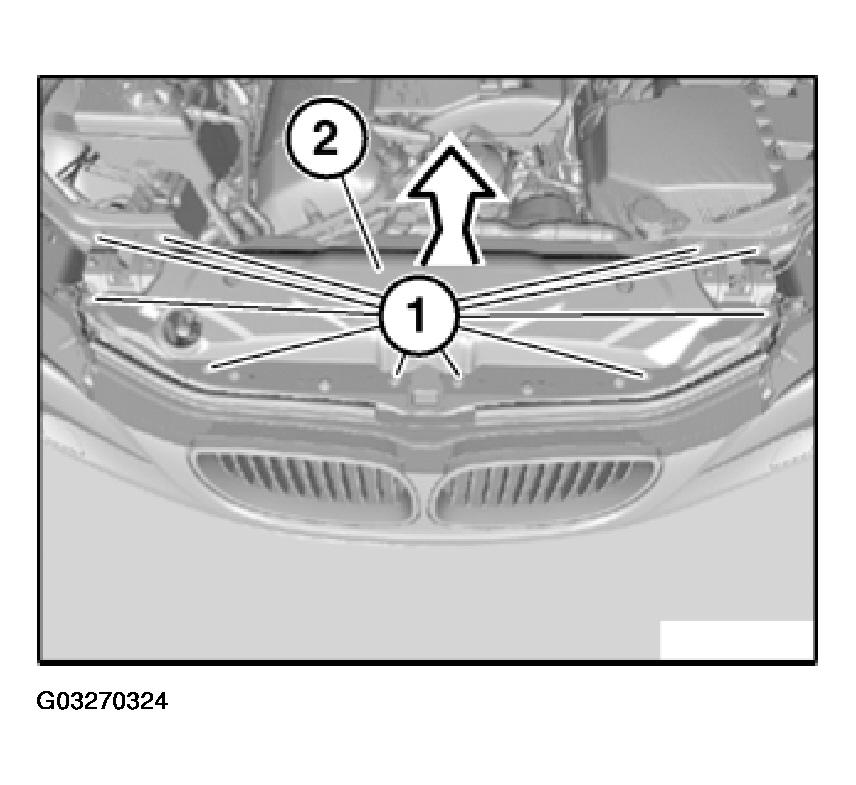

Fig 1: Locating Front Panel Center Section Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Illustrations Show M54:

Release screws (1).

Remove radiator cover (2) in direction of arrow.

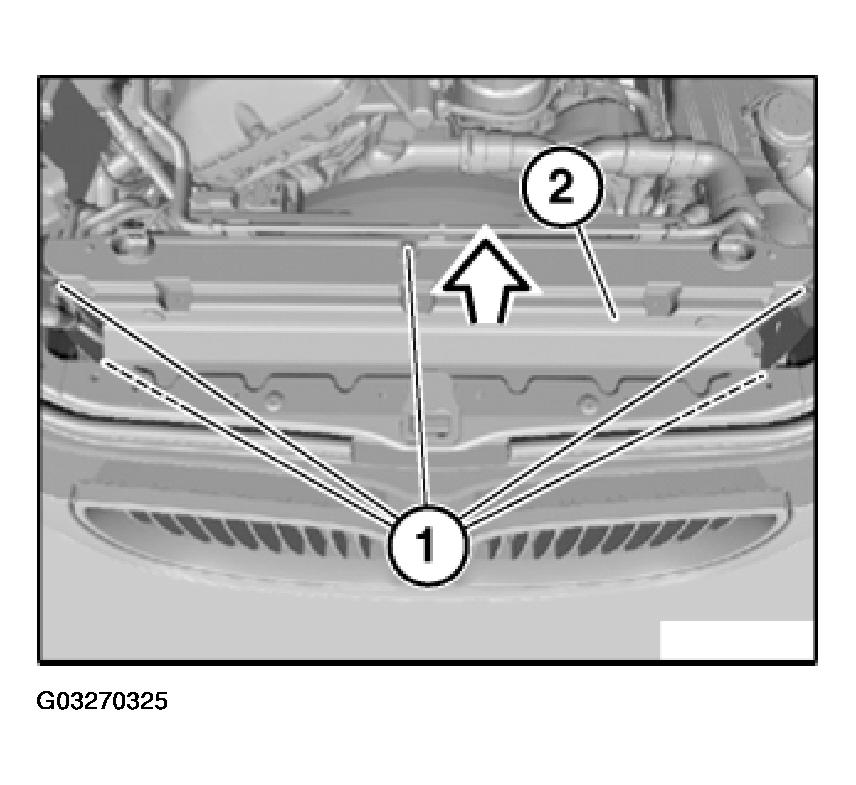

Fig 2: Identifying Radiator Cover Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
