13 72 001 Replacing air cleaner element (N62, N62TU)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Open clips (1).

Lift top section (2) of intake filter housing.

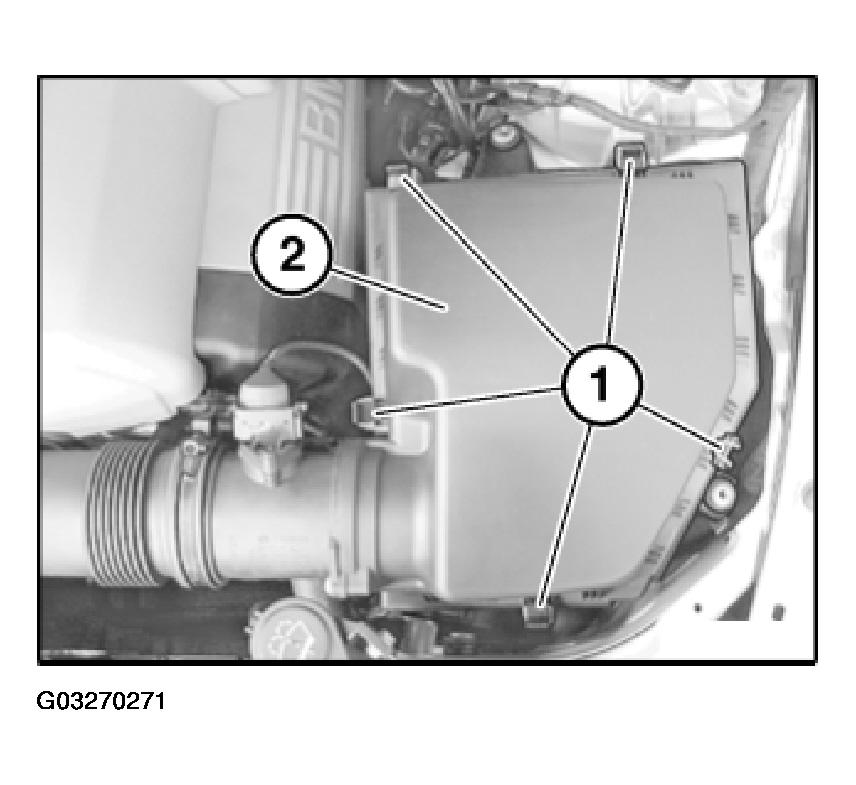

Fig 1: Locating Top Section Of Intake Filter Housing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Remove air cleaner element (1).

Installation:

Clean upper and lower sections of intake filter housing from inside.

Install new air cleaner element.

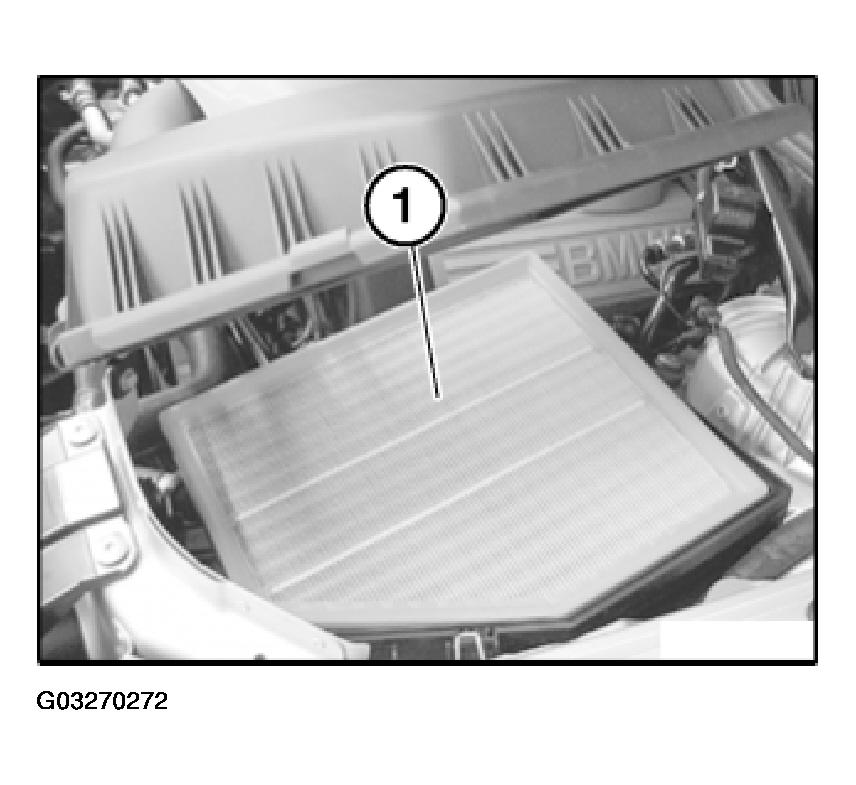

Fig 2: View Of Air Cleaner Element

Courtesy of BMW OF NORTH AMERICA, INC.
