12 14 513 Replacing pulse generator on right exhaust camshaft (N62, N62TU)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 1 to 4)

Necessary Preliminary Tasks:

Read out fault memory of DME control unit; if necessary, work through test schedules
Switch off ignition.
Remove acoustic cover.
Remove right ignition coil cover.

Unlock and detach plug connection (1).

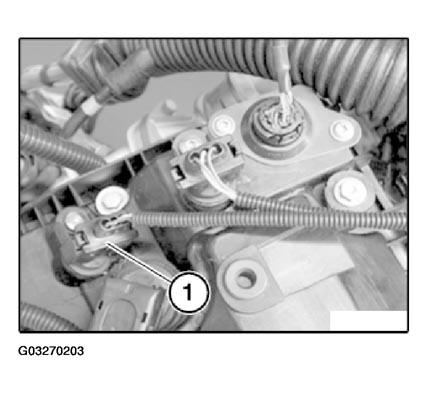

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Remove pulse generator (2).

Installation:

Replace sealing ring and coat with anti-friction rubber coating.

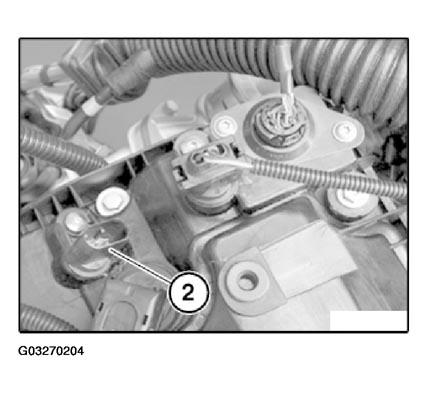

Fig 2: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory
