11 23 010 Removing and installing/replacing vibration damper (N62/N62TU)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N62/N62TU) .

Remove A/C compressor drive belt. Refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (N62) .

Remove fan cowl. Refer to 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (N62, N62TU) .

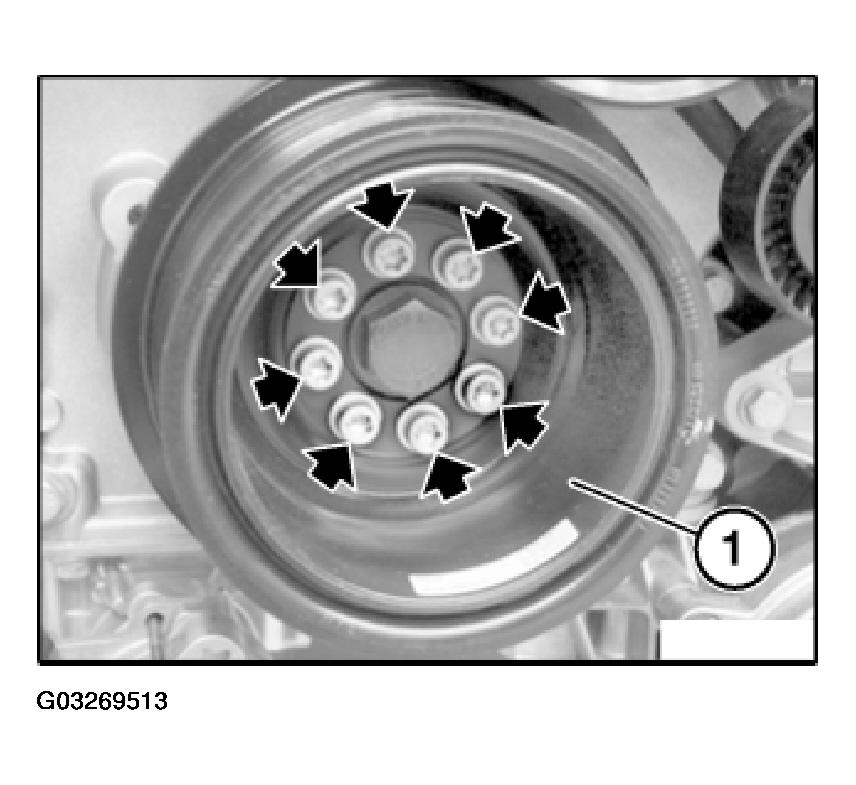

Release screws and remove vibration damper (1).

Fig 1: Locating Vibration Damper Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

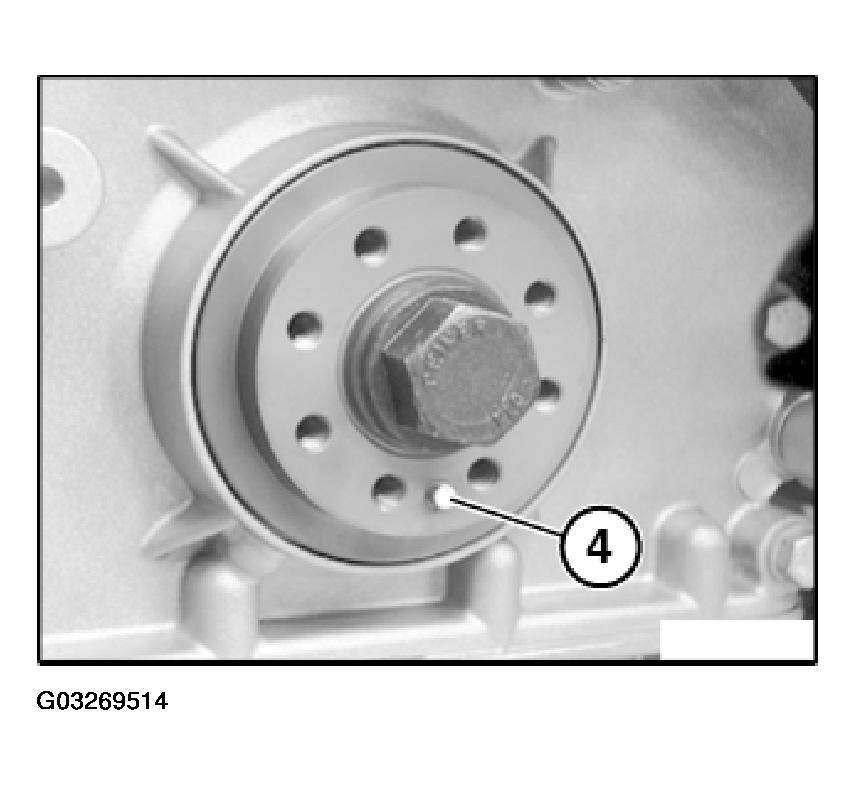

Vibration damper is secured on hub with an alignment pin (4).

Fig 2: Identifying Vibration Damper Alignment Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

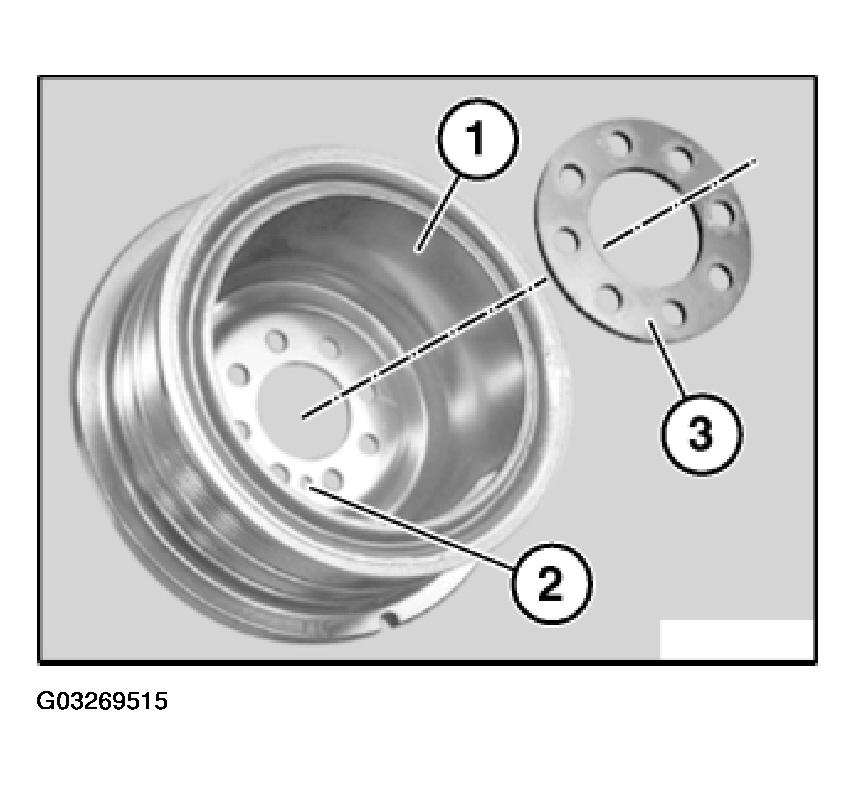

Fit bore (2) in vibration damper (1) on alignment pin in hub.

Fit washer (3).

Replace screws.

Tightening torque, refer to 11 23 3AZ in ENGINE - TIGHTENING TORQUES - 545I (4.4L) E60 .

Fig 3: Fitting Bore In Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.
