12 13 511 Replacing ignition coil (N62)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Switch off ignition.
Remove acoustic cover.
Release A/C line (intake line) in area of cyl. 4 and remove from mounting.

Pull ignition coil covers (1) out of rubber grommets.

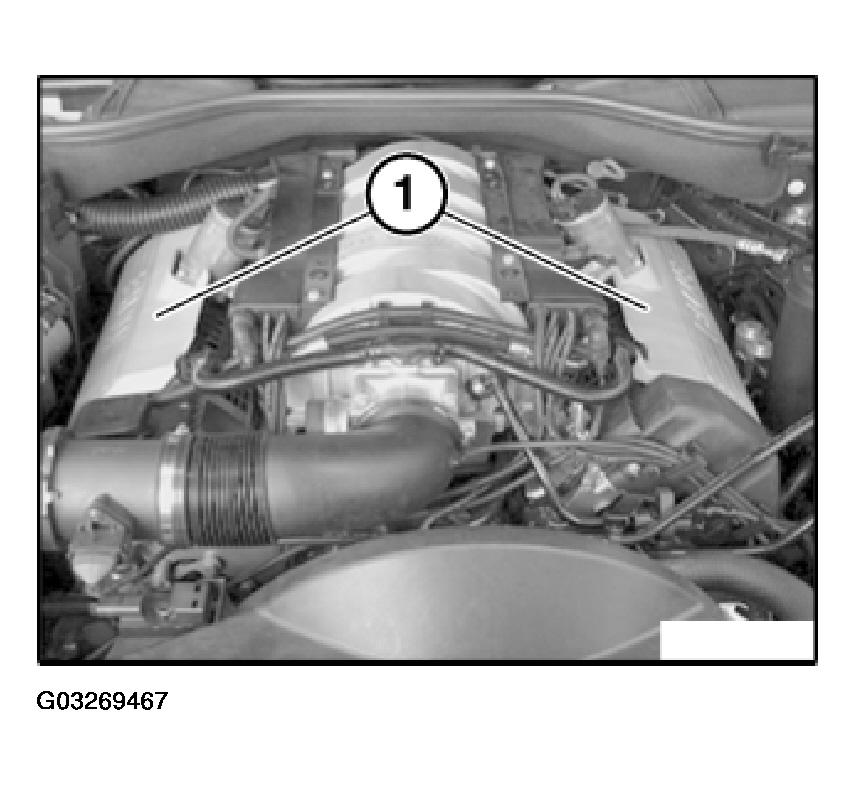

Fig 1: Identifying Ignition Coil Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug fastener (1) of ignition coil.

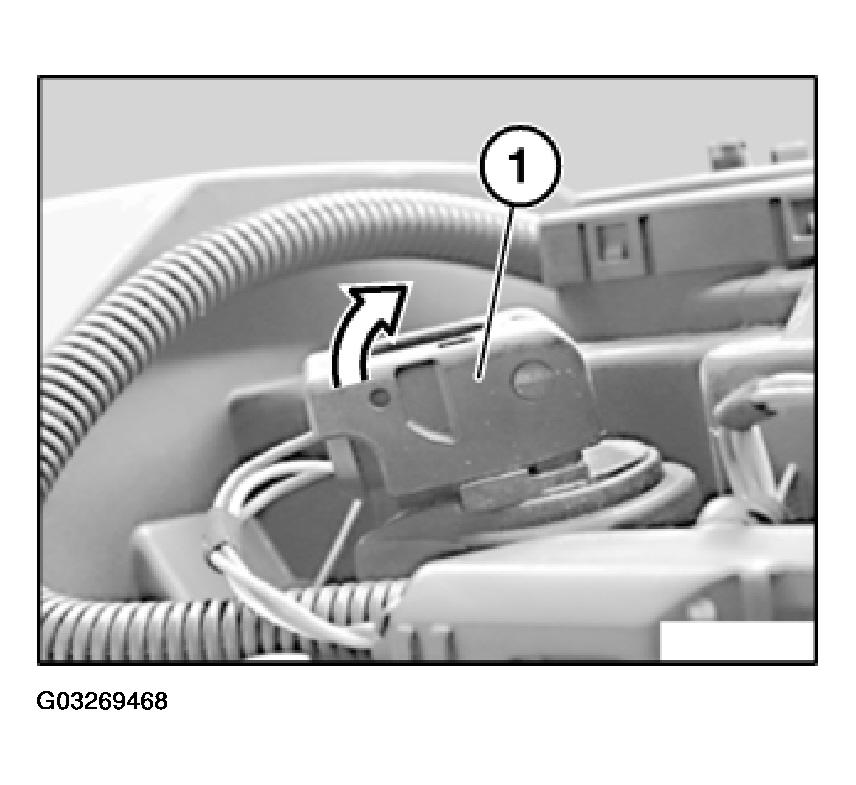

Fig 2: Unlocking Plug Fastener Of Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Detach ignition coil connector in direction of arrow.

Pull out ignition coil (2).

This procedure is applicable to all ignition coils.

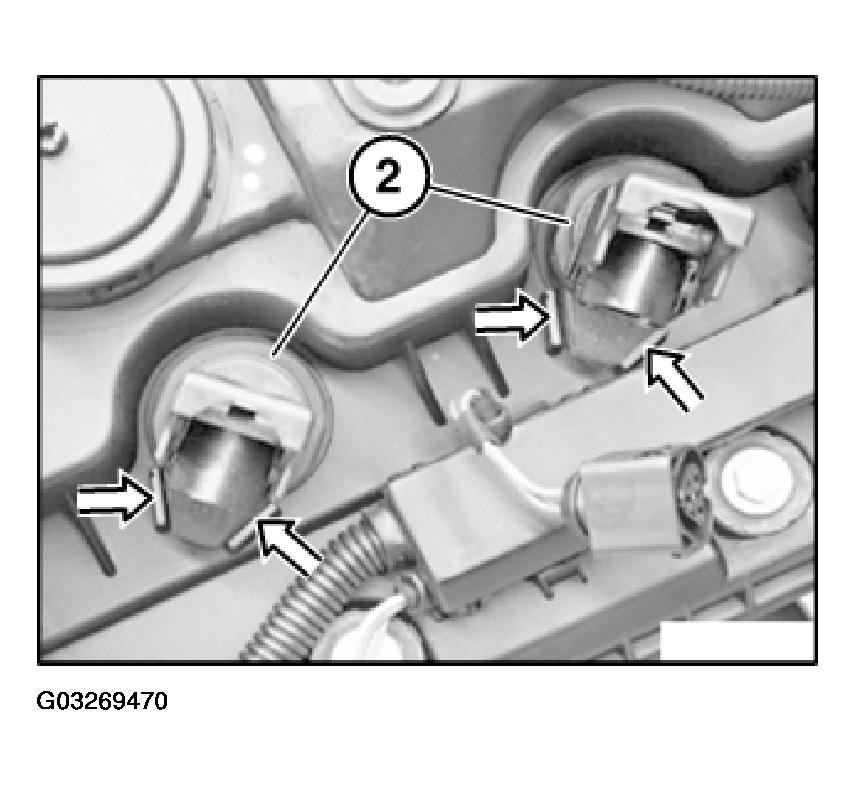

Fig 3: View Of Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert rubber seal on ignition coils (2) between guides.

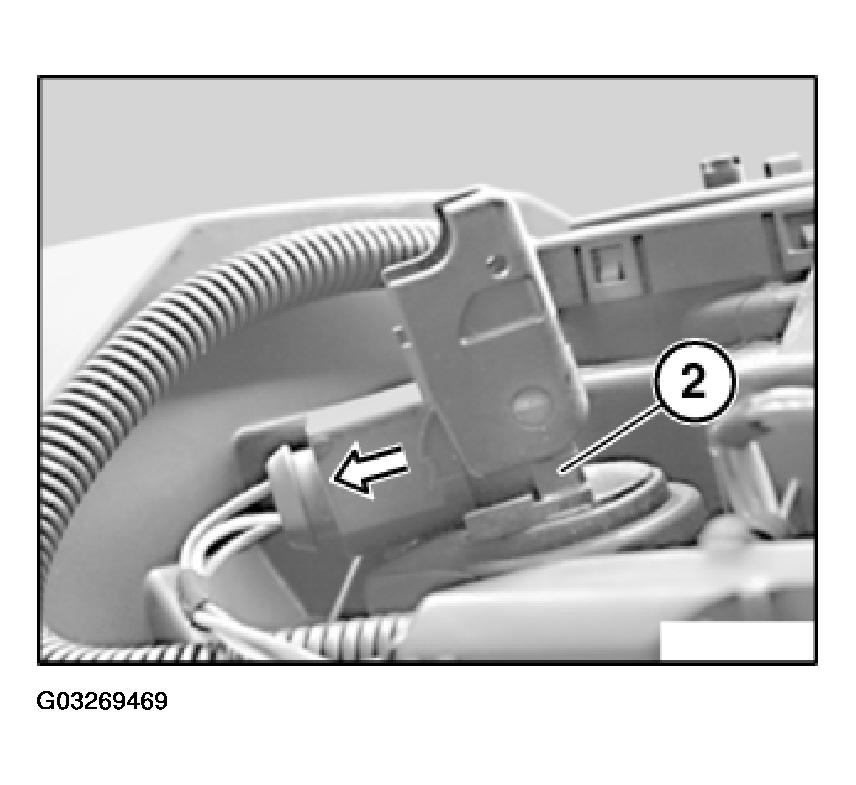

Fig 4: Inserting Rubber Seal On Ignition Coils Between Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

NOTE: Read out DME fault memory.

Check function of DME.
