11 22 513 Replacing roller bearing for dual-mass flywheel
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
- 21 2 051
- 21 2 052
NOTE:
Flywheel removed!

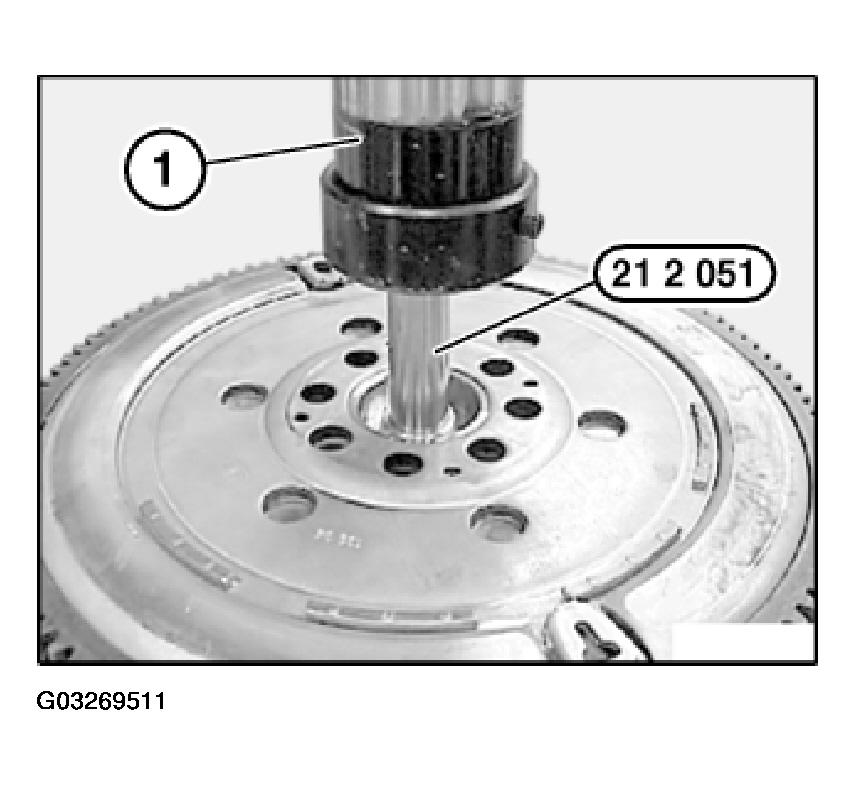

Using hydraulic press (1) and special tool 21 2 051, press out dual-mass flywheel downwards on engine side.
IMPORTANT:
Risk of damage: Roller bearing must not be driven out.

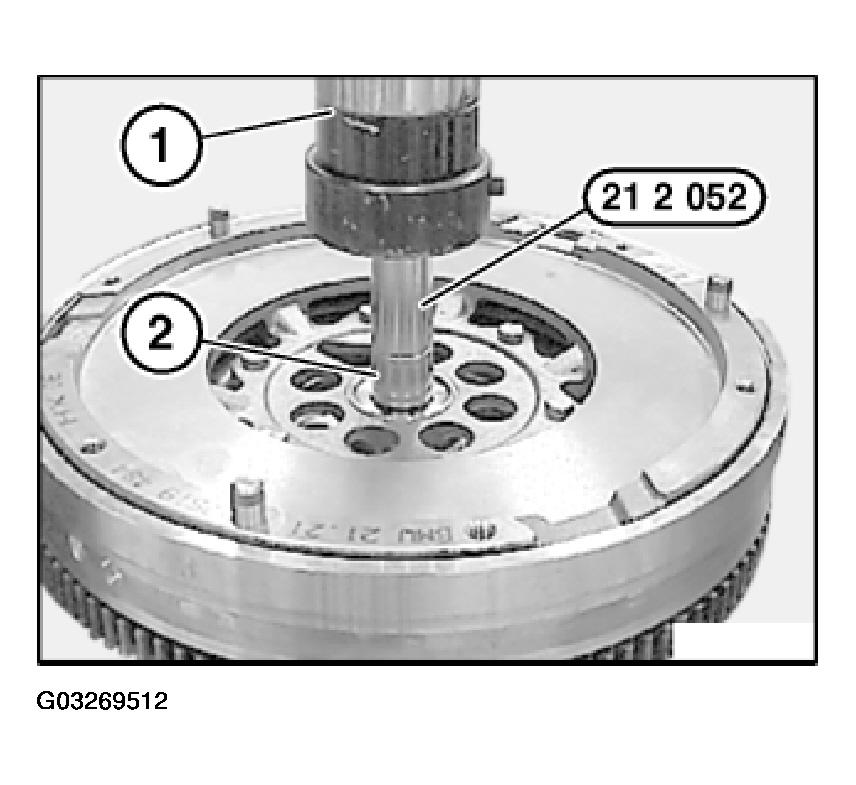

Push roller bearing (2) onto special tool 21 2 052.
Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side.
IMPORTANT:
Risk of damage:
Observe press-in instruction:
- Roller bearing must not be driven in.
- Roller bearing mounting force/travel monitored:
Min. 2000N , 1 mm before end of pressing in.
Max. 15000N , during entire press-in procedure.
