11 00 045 Checking absolute compression of all cylinders

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Diagnosis and Information System (DIS)

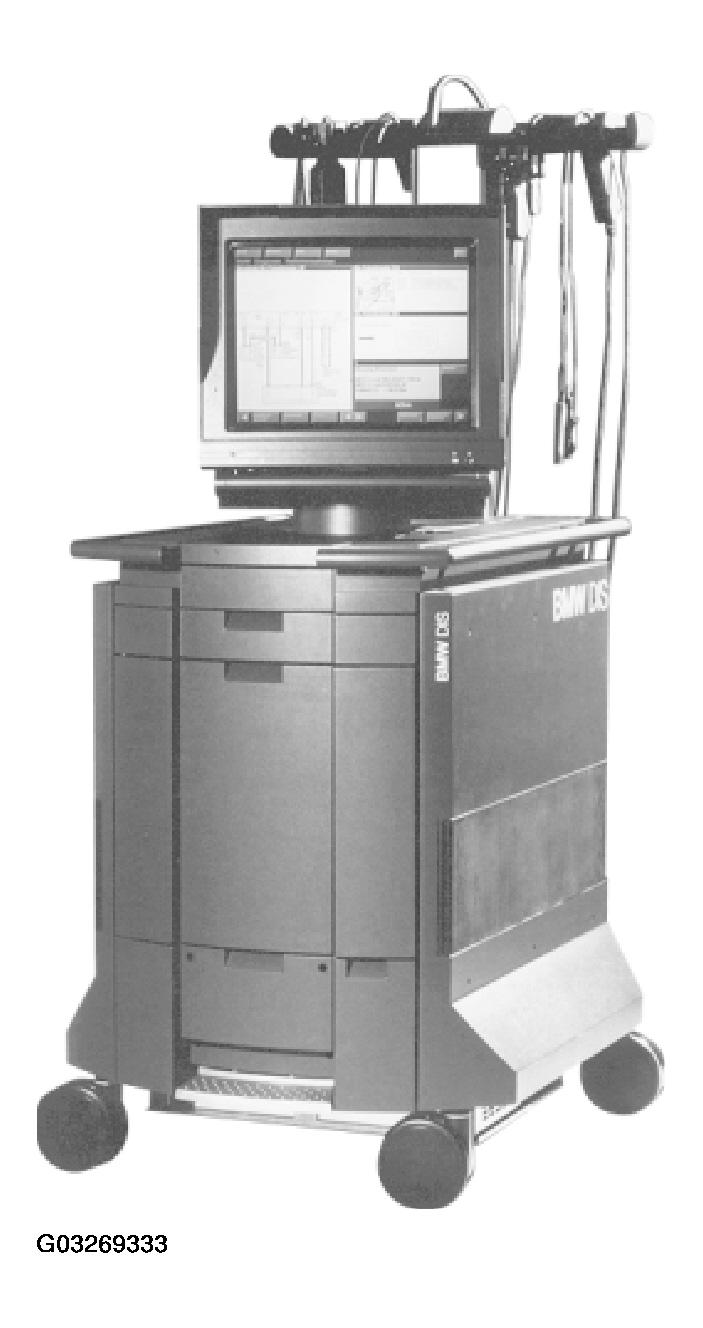

Fig 1: Identifying Diagnosis And Information System (DIS) Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary Preliminary Tasks:

Remove acoustic cover.
Remove right ignition coil cover.
Connect DIS Tester.

Test:

Call up Diagnosis.
Select car > right arrow key.
Function selection:
- Complete vehicle.
- Drive.
- Engine management:
  - Valve gear.
  - Valvetronic variable valve gear.
  - Mechanical components / function.
Test schedule > right arrow key.
- Compression test > right arrow key.
Follow DIS Tester instructions.
NOTE: Clear fault memory.
