Removing radiator cover

WARNING: This page is about a different car, the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustrations show N62:

Release screws along line.

Unclip Bowden cable (1).

Remove cover (2).

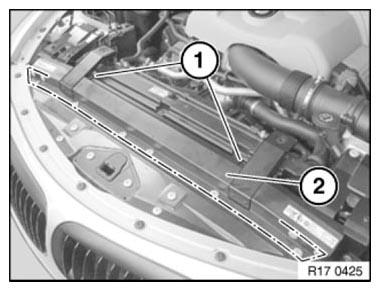

Fig 1: Identifying Radiator Cover With Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations show N62:

Unclip line (1).

Unfasten screws.

Remove module carrier cover (2).

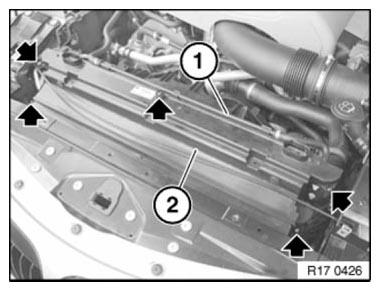

Fig 2: Locating Module Carrier Cover With Lines

Courtesy of BMW OF NORTH AMERICA, INC.
