Necessary preliminary tasks

WARNING: This page is about a different car, the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear underbody protection

GS6-17DG/BG and GS6-37DG/BG transmissions only.

Disconnect plug connection (1) on reverse gear switch.

Remove reverse gear switch.

Tightening torque 23 14 1AZ.

NOTE: Illustration similar

Fig 1: Identifying Plug Connection On Reverse Gear Switch

G04726012

Courtesy of BMW OF NORTH AMERICA, INC.

GS6-53DG/BG transmission only

Disconnect plug connection (1) on reverse gear switch.

Remove reverse gear switch.

Tightening torque 23 14 1AZ.

NOTE: Illustration similar

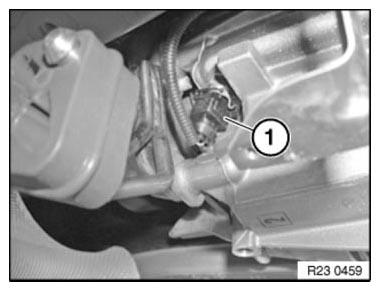

Fig 2: Identifying Plug Connection On Reverse Gear Switch

G06915408

Courtesy of BMW OF NORTH AMERICA, INC.
