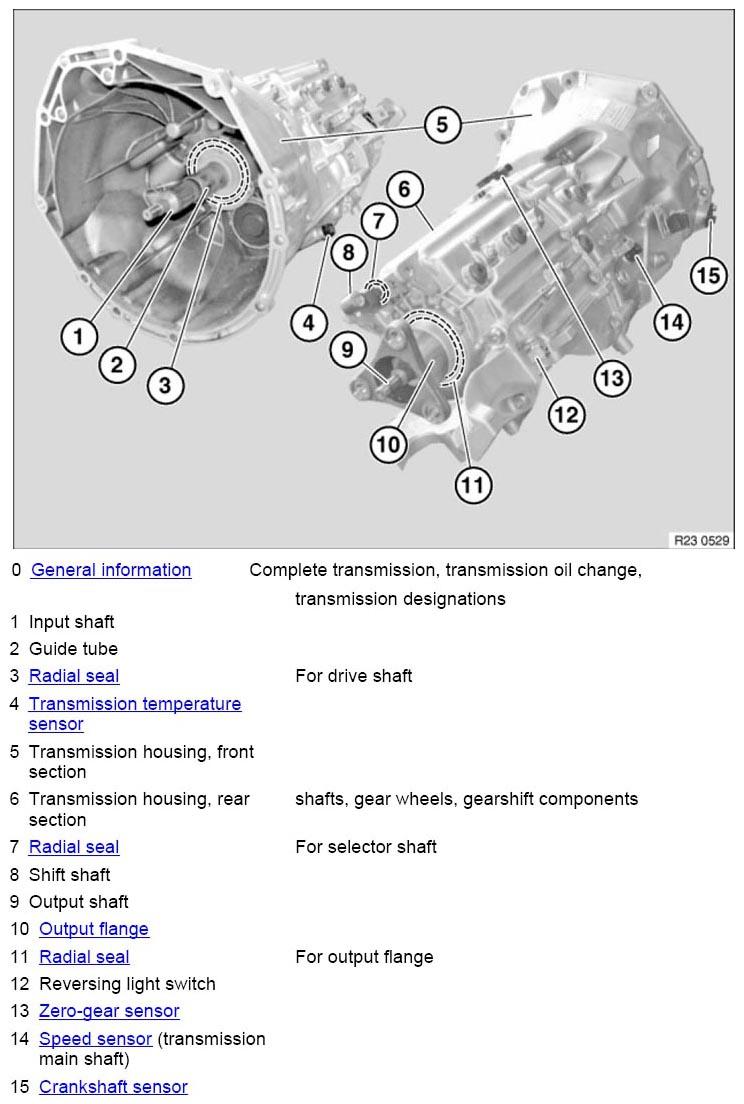

23 00... Overview of transmission housing (GS6- 53BZ) (S85/S65)
WARNING: This page is about a different car, the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
- Input shaft
- Guide tube
- Radial seal
For drive shaft
- Transmission temperature sensor
- Transmission housing, front section
- Transmission housing, rear section
shafts, gear wheels, gearshift components
- Radial seal
For selector shaft
- Shift shaft
- Output shaft
- Output flange
- Radial seal
For output flange
- Reversing light switch
- Zero-gear sensor
- Speed sensor (transmission main shaft)
- Crankshaft sensor
