64 22 198 Removing And Installing/Replacing Fresh-Air Grille In Rear Console (Long Version)
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear console trim.

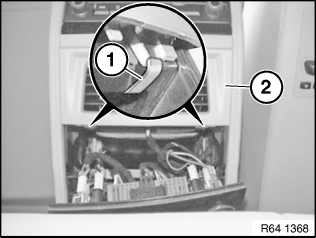

Remove clips (1).
Remove rear cabin fresh-air grille (2) and disconnect plug connection behind.
Installation:
Make sure rear compartment fresh-air grille (2) and clips (1) are correctly seated.
