Removal & Installation
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove decorative strip on instrument panel on right. See 51 45 380 REMOVING AND INSTALLING (REPLACING) RIGHT DECORATIVE STRIP ON INSTRUMENT PANEL .

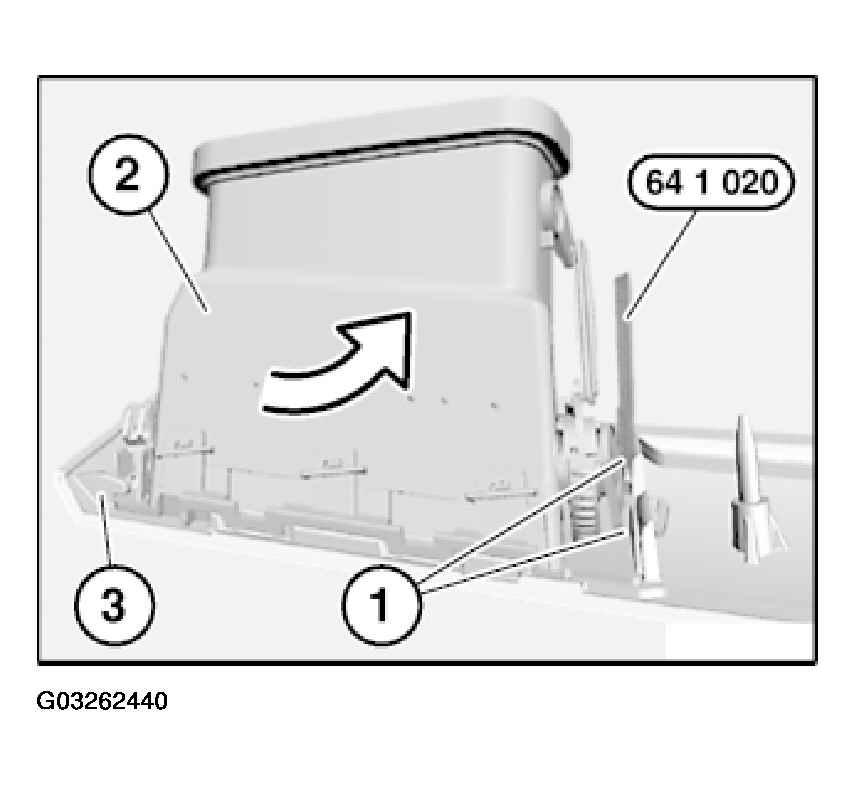

Lever out catches (1) with special tool 64 1 020 and unclip right fresh-air grill (2) from decorative strip on instrument panel on right (3).
