64 11 992 Removing and installing/replacing solar sensor
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove speaker trim from trim for instrument panel at top. See 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .

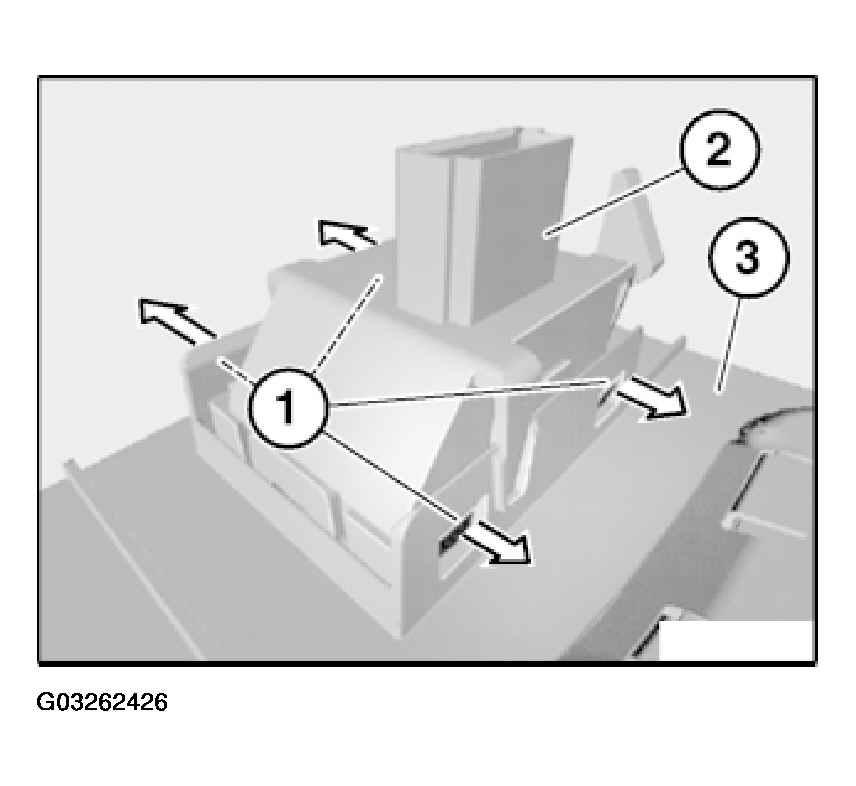

Unlock catches (1) in direction of arrow and remove solar sensor (2) from speaker trim (3).
Installation:
Catches (1) on speaker trim (3) must not be damaged.
Make sure solar sensor (2) is correctly seated in speaker trim (3).
