64 11 970 Replacing fogging sensor

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

00 9 317

WARNING: Make sure rooms are well ventilated when working with adhesive remover indoors.

IMPORTANT: Do not under any circumstances use paint thinner to clean the bonding surface.

Expand two-part mirror base cover (1) by pressing from below and detach. Feed out two-part mirror base cover (1) and remove.

Fig 1: Removing Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

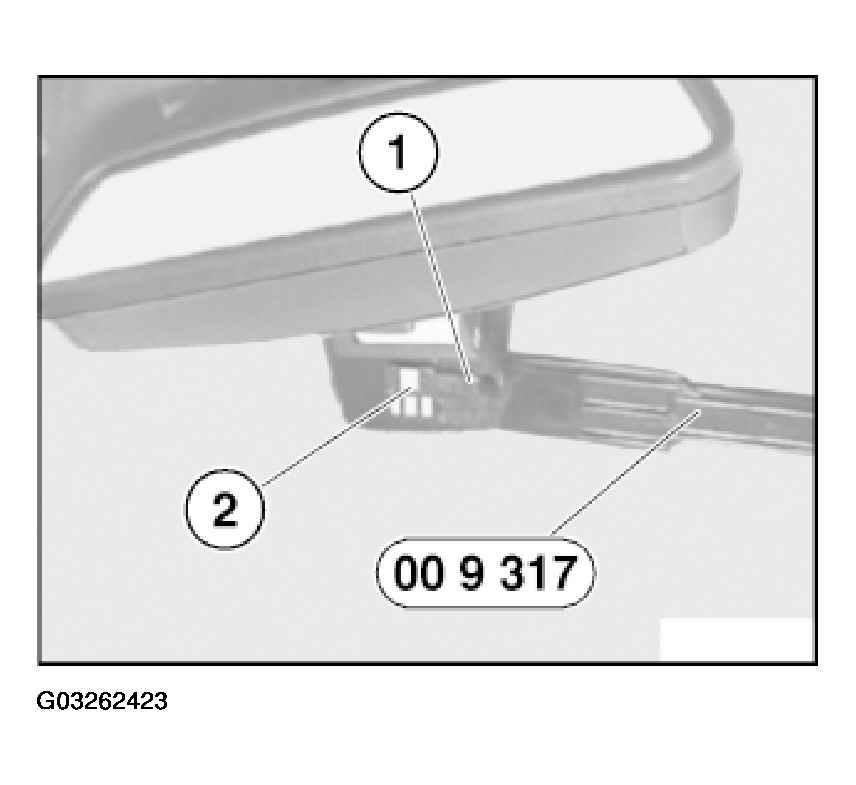

Unfasten plug connection (1) and disconnect.

NOTE:

If necessary, carefully heat fogging sensor (2) with a hot air blower to approximately 40-60°C.

Lift off fogging sensor (2) with special tool 00 9 317 and slowly pull off from windshield.

Installation:

Bonding surface must be dry and free of dust and grease.

Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Service).

After cleaning, do not touch bonding surface with bare hands.

Fig 2: Identifying Fogging Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

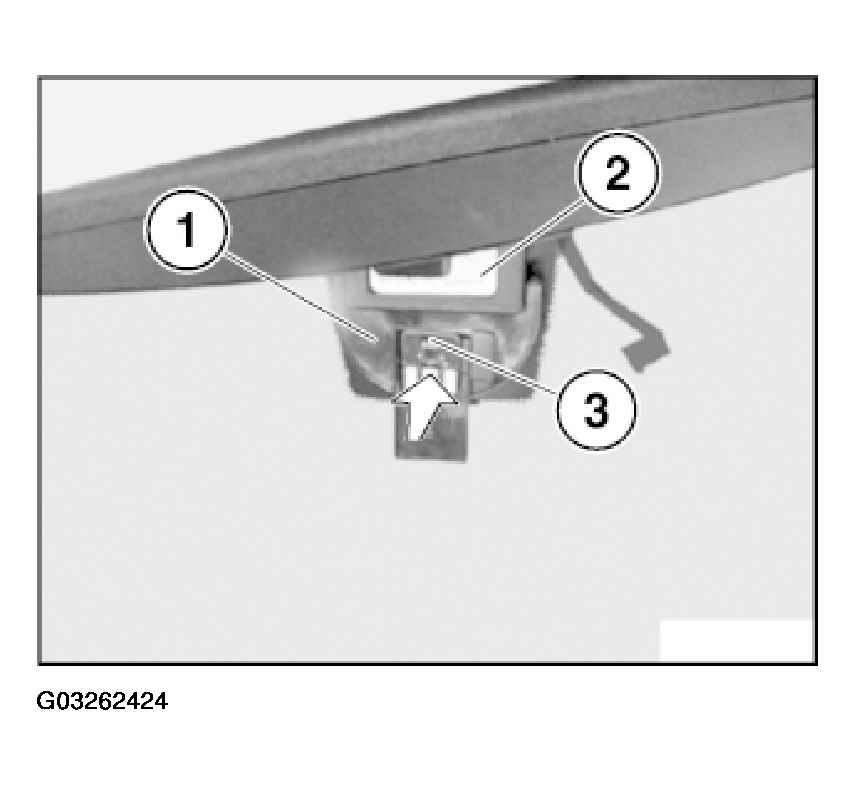

Pull off protective film completely from fogging sensor (3).

Place mounting template (1) as pictured on rain sensor (2).

Press fogging sensor (3) in direction of arrow with a contact pressure of >=15 N/cm² onto inside of windshield.

NOTE: Firm thumb pressure attains approx. 30 N/cm² .

Remove mounting template (1) carefully from fogging sensor (3).

Fig 3: Removing Mounting Template

Courtesy of BMW OF NORTH AMERICA, INC.
