64 11 869 Replacing servodrive of stratification flap
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove right glovebox with housing. See 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING .

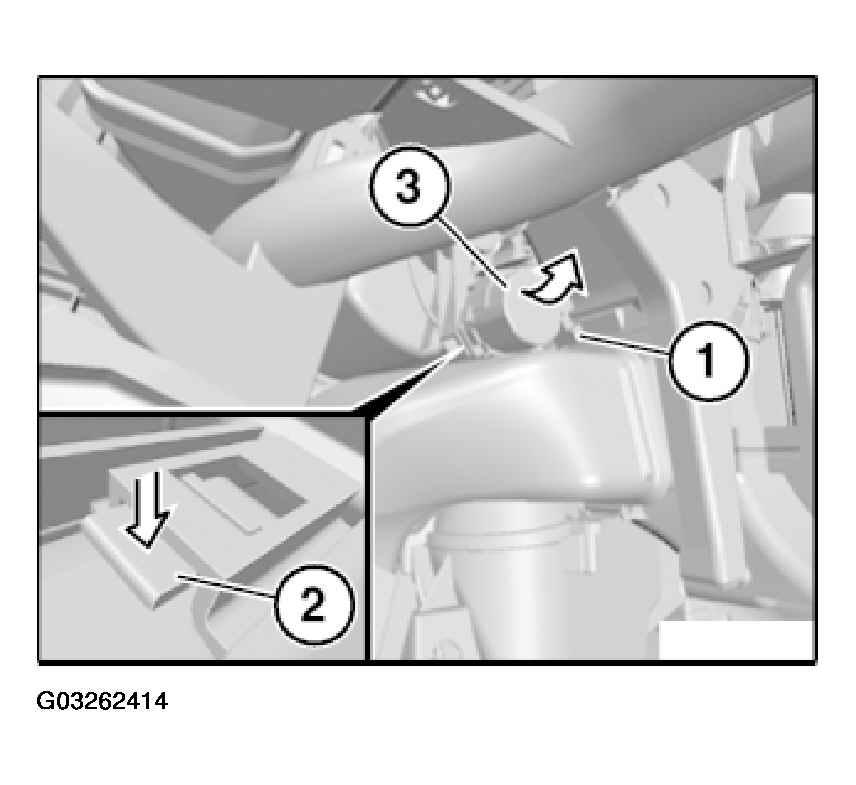

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for stratification flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". See 64 11... Installing Servodrive .
Servodrive for stratification flap (3) must snap audibly into place.
