64 11 832 Replacing servodrive for right ventilation flap
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove airbag module on passenger side.

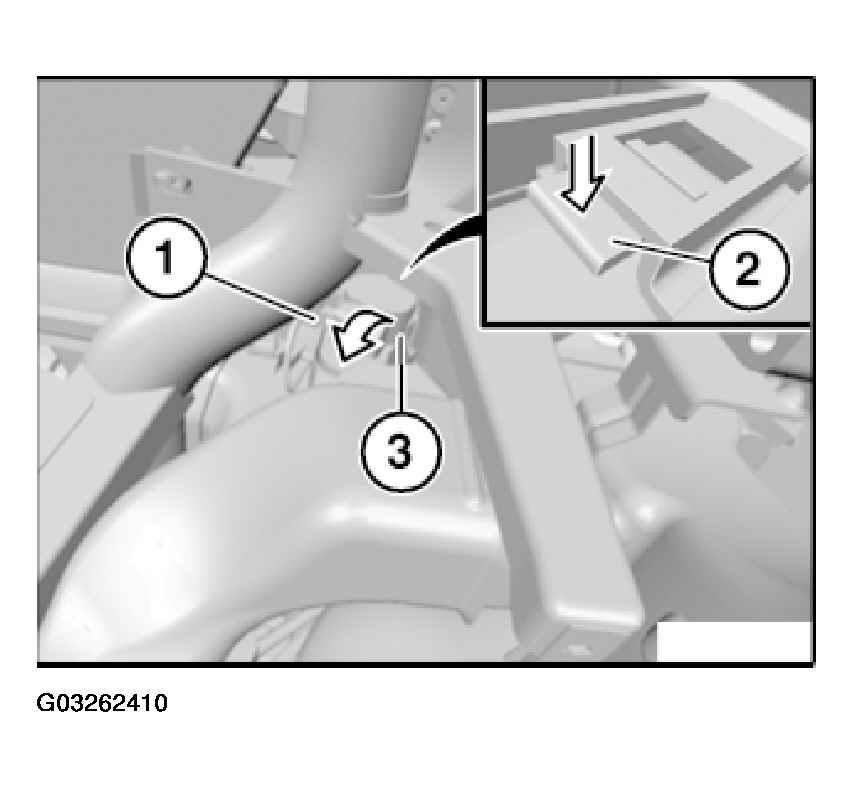

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for right ventilation flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". See 64 11... Installing Servodrive .
Servodrive for right ventilation flap (3) must snap audibly into place.
