64 11 208 Replacing heater core
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove heater. See 64 11 206 Removing And Installing Or Replacing Heater .

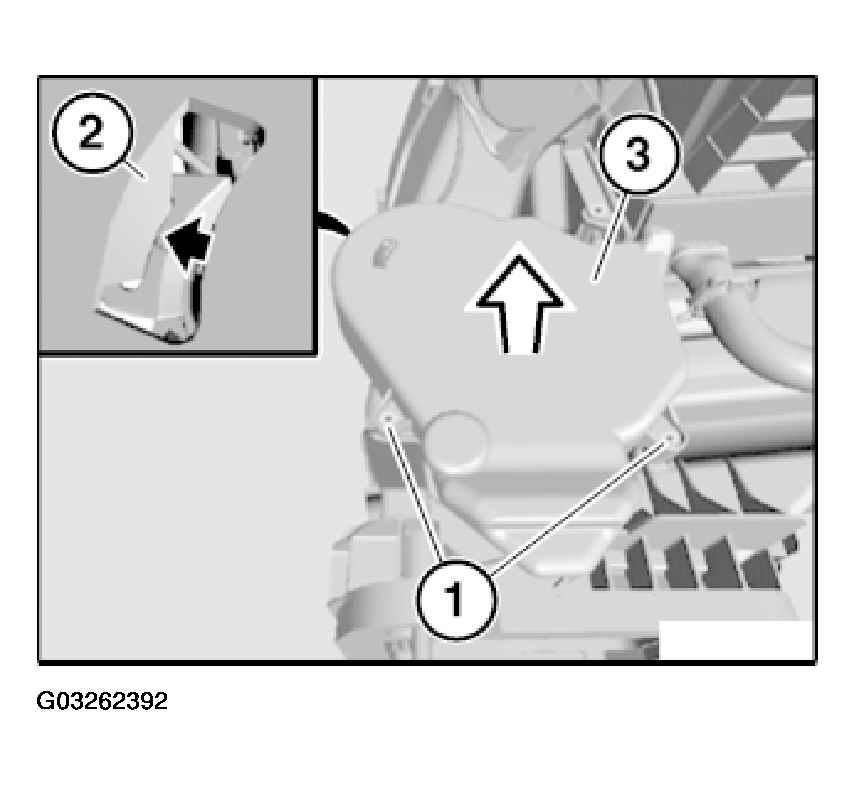

Release screws (1).
Press lock (2) and remove cover (3) in direction of arrow.
Installation:
Ensure cover (3) is correctly seated.

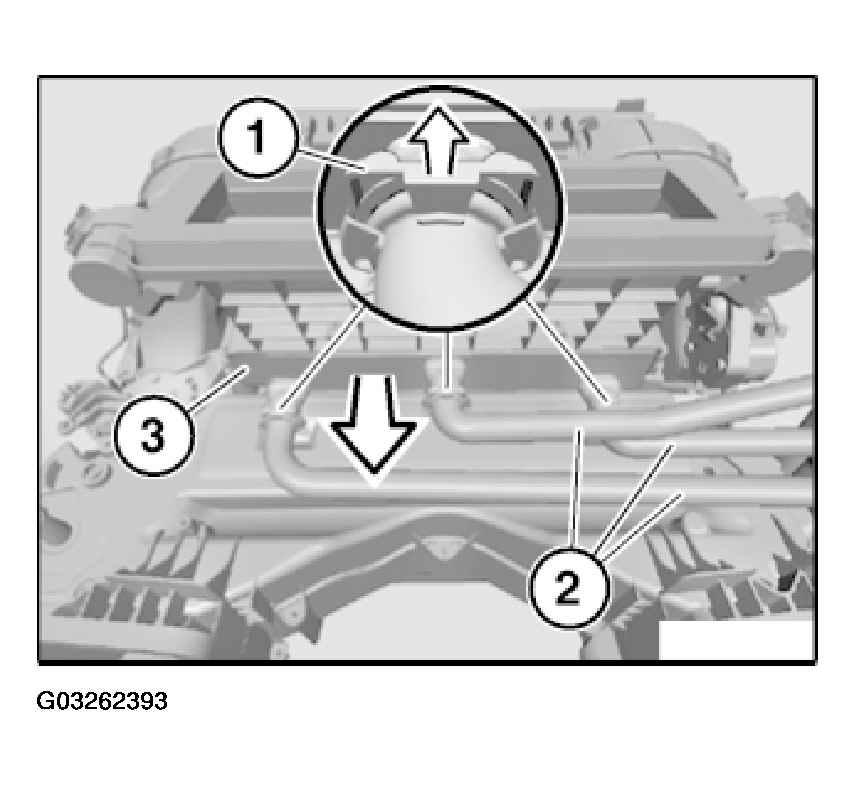

Pull out clips (1) in direction of arrow.
Installation:
Make sure clips (1) are correctly and firmly seated.
Pull pipes (2) out of heater core (3).
Installation:
Replace sealing rings.
Coat sealing rings with antiseize agent.
Make sure sealing rings are correctly seated.
Pull out heater core (3) in direction of arrow.
Installation:
Make sure heater core (3) is correctly seated.
