64 53 518 Replacing desiccant insert for A/C system (condenser removed)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with warnings relating to working on A/C systems. See 64 52... Notes/Instructions On Working On Air-Conditioning Systems .

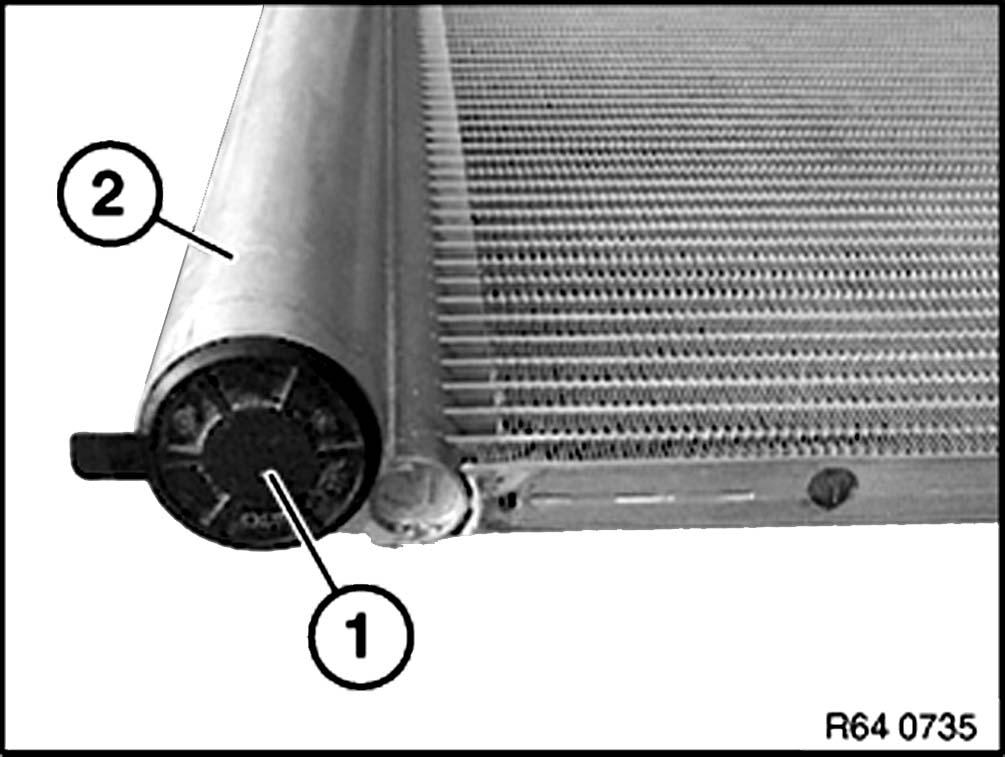

Remove protective cap (1) from condenser for A/C system (2).

Fig 1: Removing Protective Cap From Condenser For A/C System

G00432933

Courtesy of BMW OF NORTH AMERICA, INC.

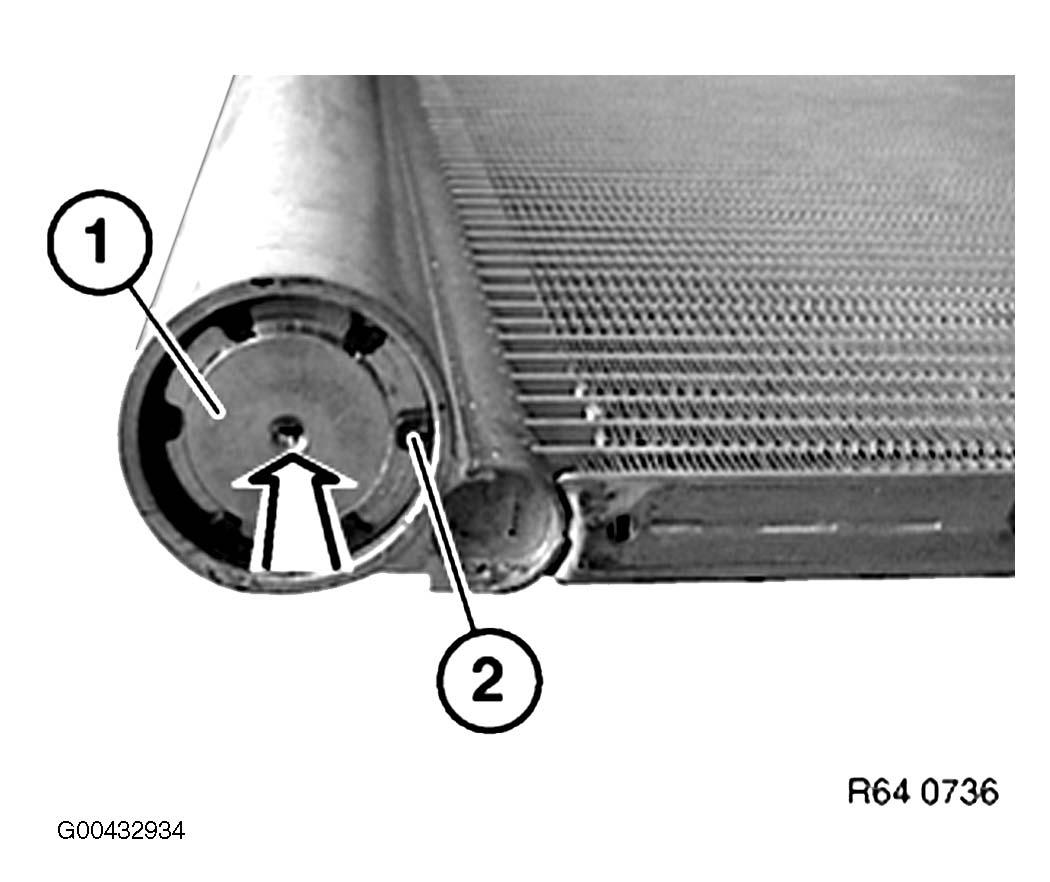

Press sealing cap (1) inwards and remove circlip (2).

Fig 2: Pressing Sealing Cap Inward And Removing Circlip

G00432934

Courtesy of BMW OF NORTH AMERICA, INC.

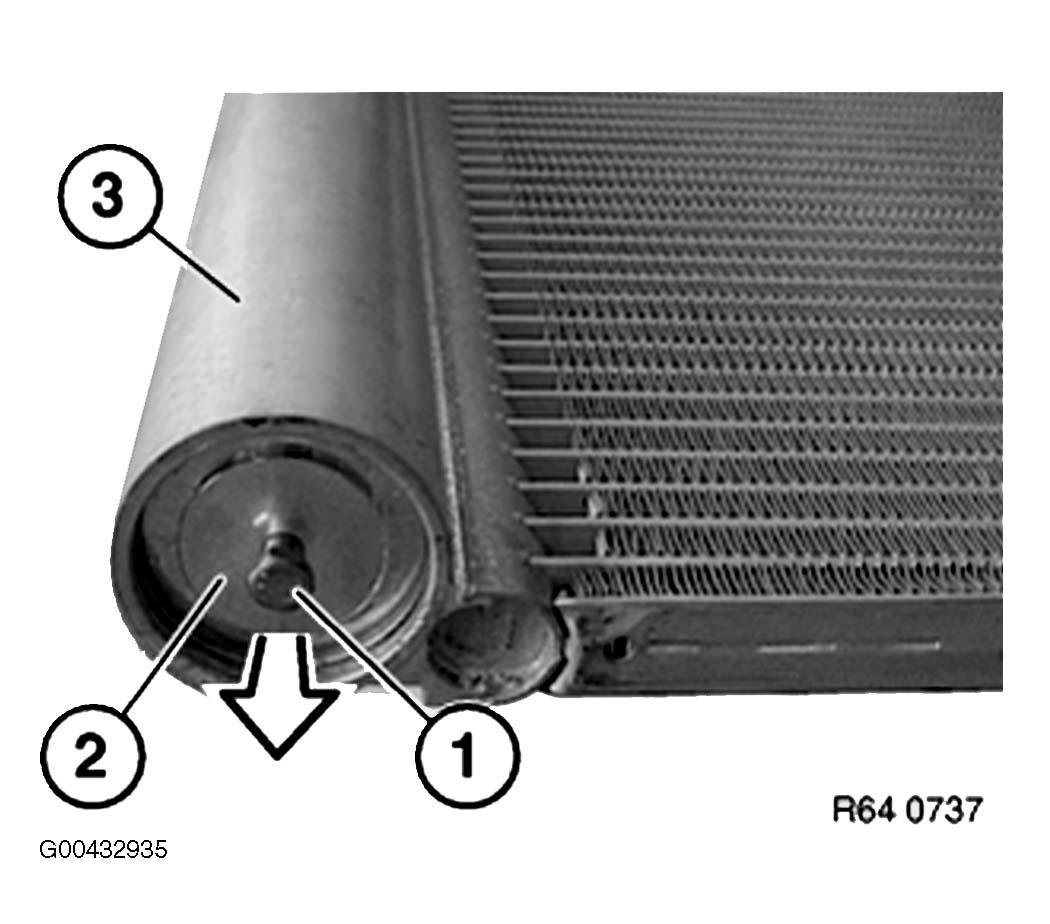

Remove protective cap (2) from condenser for A/C system (3) with aid of an inserted screw (1).

Fig 3: Using Screw To Remove Protective Cap

G00432935

Courtesy of BMW OF NORTH AMERICA, INC.

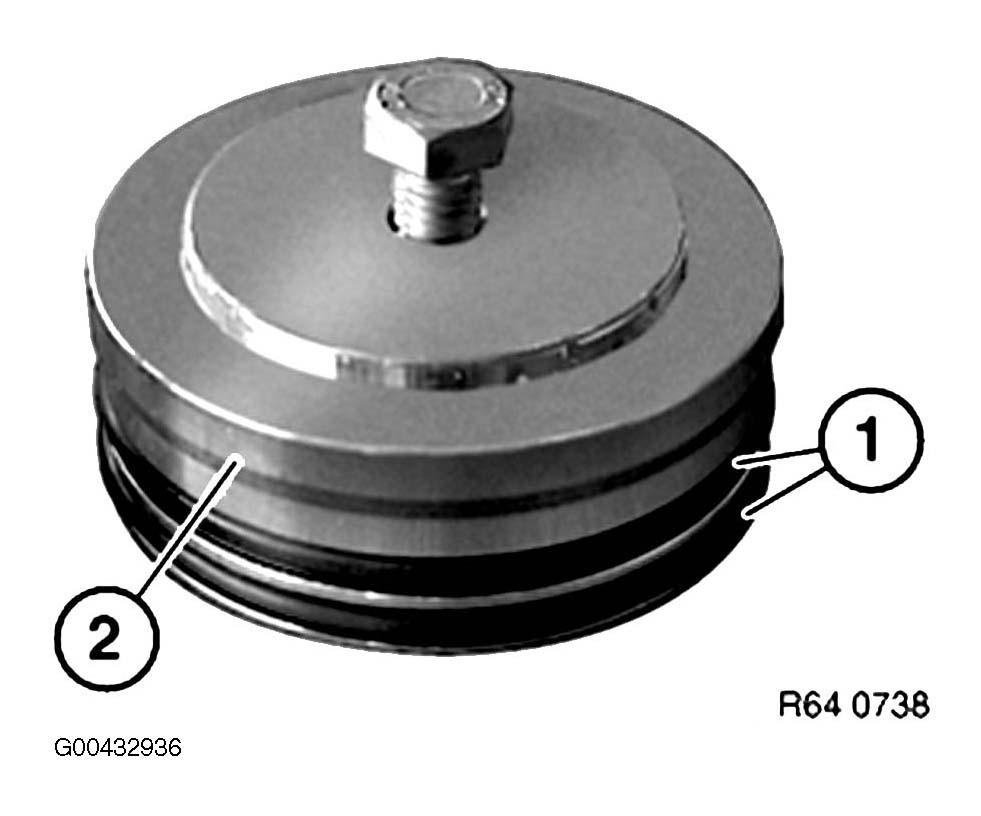

During installation, replace sealing rings (1) of sealing cap (2) and coat with suitable refrigerant oil.

Fig 4: Replacing Sealing Rings

G00432936

Courtesy of BMW OF NORTH AMERICA, INC.

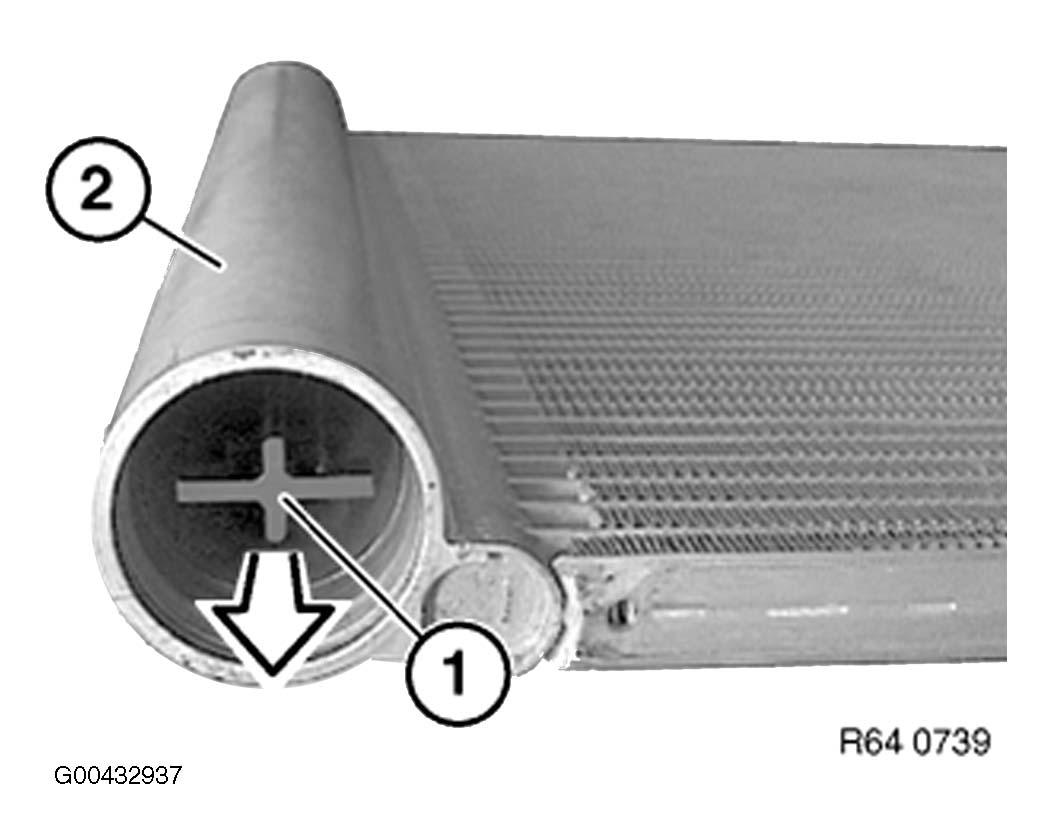

Remove desiccant insert for A/C system (1) in direction of arrow from condenser for A/C system (2).

Fig 5: Removing Desiccant Insert For A/C System

G00432937

Courtesy of BMW OF NORTH AMERICA, INC.
