41 14 511 Replacing Complete Rear Left Wheel Arch (Rear Left Side Panel Removed)

Spot-weld bonding is used on the E60. Observe specific procedure  .

Place vehicle on straightening bench.

Following new body parts are required:

• Wheel arch, rear, inner half
• Wheel arch, outer, rear
• C-pillar, inner
• C-pillar, inner, top

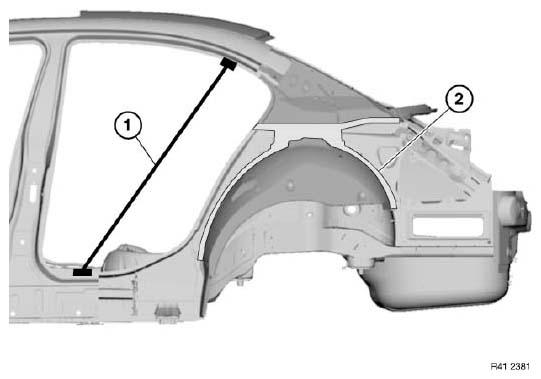

  Fig 1: Identifying Wheel Arch And C-Pillar

  Courtesy of BMW OF NORTH AMERICA, INC.

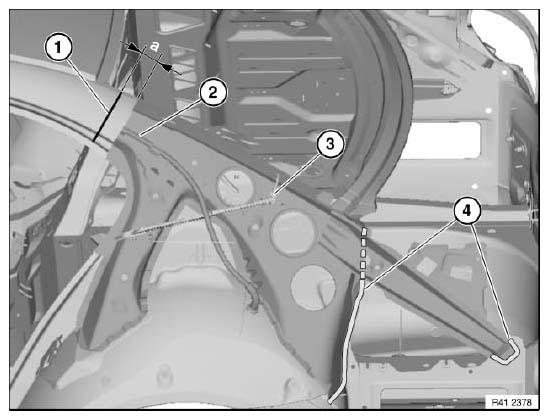

  Fig 2: Identifying Water Drainage Hose And Cavity Bulkhead

  Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut on side panel at rear in accordance with measurement a and cut.

Measurement a = approx. 30 mm from side panel severance cut.

Remove cavity bulkhead (3).

Open weld joints in areas (4).

Installation:

Mark severance cut (1) on new side panel in accordance with vehicle and cut.

Insert REINFORCEMENT PLATE  at severance cut.

Apply window glass adhesive to CAVITY ACOUSTIC BAFFLE  (3).

Open weld joints in area (1).

Remove front C-pillar reinforcement (2).

Fig 3: Identifying Front C-Pillar Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with measurement a and cut.

Measurement a = approx. 200 mm from roof edge.

Open weld joints in areas (2).

Installation:

Mark severance cut (1) on new part in accordance with vehicle and cut.

Insert REINFORCEMENT PLATE  at severance cut.

Fig 4: Identifying Weld Joints Opening Area

Courtesy of BMW OF NORTH AMERICA, INC.

Cut wheel arch along line (1).

Fig 5: Identifying Wheel Arch Cutting Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cut on vehicle + 20 mm extra material and cut (1).

Fig 6: Identifying Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Securing Door Opening At Welding Spot Flanges With Support Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Secure door opening at welding spot flanges with support strut (1)

Open weld joints in area (2).

Installation:

MIG solder seam in area (2) is replaced by a MAG weld seam.

Cut top inner C-pillar (1) along line (2).

Open weld joints in area (3).

Fig 8: Identifying Weld Joints Opening Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cut along line (1) (approx. 20 mm overlap on vehicle) and cut.

Adapt new part in areas (2) to vehicle.

Fig 9: Identifying Severance Cut Along Line

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Fig 10: Identifying Weld Joints Opening Area (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Installation:

Adjust new parts to fit with straightening attachment or universal mount.

Fig 11: Identifying Weld Joints Opening Area (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
