41 35 000 Removing And Installing/Replacing Side Panel, Front Left Or Right

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not damage adjoining body parts.

Installation information:

BODY GAP DIMENSIONS serve as basis for adjustment tasks.

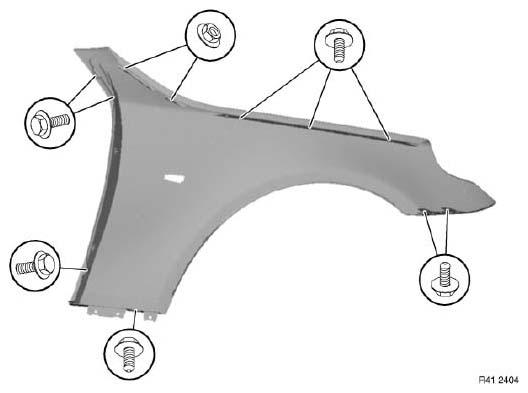

Fig 1: Identifying Inner View Of Front Side Panel With Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Inner view of front side panel with holders.

Remove screws and nuts.

Replacement:

Also apply sprayable sealing compound on inside of front panel in area (1). Width approx. 50 mm.

Material: Terostat 9320

Fig 2: Identifying Front Panel Area

Courtesy of BMW OF NORTH AMERICA, INC.
