41 21 510 Replacing Front Left Door Pillar (Front Side Panel Removed)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL and observe relevant procedures.

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required:

A-pillar, outer
Attachment, entrance, outer
Crashbox
Connection, side frame, bottom
Connection, side frame, top
Attachment, endplate
Connection, A-pillar/roof frame
Shaped section, A-pillar, inner

Fig 1: Identifying Front Left Door Pillar Parts
Courtesy of BMW OF NORTH AMERICA, INC.

Open brazing solder and weld joints in area (1).

Remove endplate attachment (2).

Open weld joints in areas (3).

Installation:

Replace brazed seams with MAG weld seams in area (1).

Fig 2: Identifying Weld Joints Area And Endplate Attachment

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Fig 3: Identifying Weld Joints Areas (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Fig 4: Identifying Weld Joints Areas (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1) and (2).

Installation:

Weld new part in area (2) from outside with MAG weld seam.

Fig 5: Identifying Weld Joints Areas (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Remove crashbox (2).

Fig 6: Identifying Weld Joints Area And Crashbox

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) on outer entrance attachment and cut.

Measurement a = approx. 200 mm from edge of hole (2) dia. 20 mm.

Open weld joints in area (3).

Installation:

Weld in REINFORCEMENT PLATE at severance cut.

Fig 7: Mark Severance Cut On Outer Entrance Attachment

Courtesy of BMW OF NORTH AMERICA, INC.

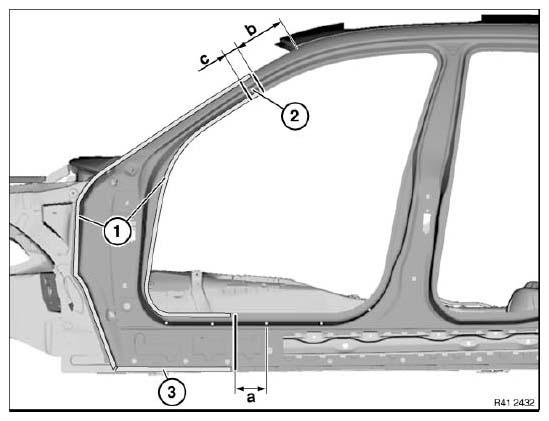

Mark severance cuts in accordance with specified measurements and cut.

Measurement a = approx. 100 mm before hole dia. 6 mm.

IMPORTANT: Only cut outer metal plate on both severance cuts.

Measurement b = approx. 180 mm below roof edge.

Measurement c = approx. 100 mm below severance cut b.

Open weld joints in areas (1) and (3).

Remove metal section (2).

Installation:

Sheet panel (2) is needed again to seal cowl.

Weld in REINFORCING PANELS at all severance cuts.

BOND and rivet new part in area (3).

Use Hemlock 813 blind rivet

Double number of rivets with respect to welding spots in area (3).

Fig 8: Mark Severance Cuts In Accordance With Specified Measurements

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For following severance cut, do not damage sunroof water drain hose.

Mark severance cut (1) at A-pillar/roof frame connection and cut.

Measurement a = approx. 210 mm from roof edge.

Open weld joints in areas (2).

Weld in REINFORCEMENT PLATE at severance cut.

Fig 9: Mark Severance Cuts In Accordance With Specified Measurements

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Open adhesive joints in areas (1) and (2).

Installation:

Replace adhesive in areas (1) with plug welding.

Fig 10: Identifying Weld Joints Areas And Adhesive Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply window glass adhesive to CAVITY ACOUSTIC BAFFLE (1).

Apply ADHESIVE in area (2).

Fig 11: Identifying Window Glass Adhesive Applying Area To Cavity Acoustic Baffles

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Open weld joints in areas (2).

Mark A-pillar/roof frame connection (1) in accordance with vehicle and cut.

Fig 12: Identifying Cutting Mark And Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Open weld joints (1) at outer entrance attachment (2).

Mark severance cut (3) in accordance with vehicle and cut.

Cut off metal section (4) in accordance with measurement a from new part.

A = approx. 100 mm

Fig 13: Identifying Weld Joints Area At Outer Entrance Attachment And Cutting Marks On Metal Section

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Apply window glass adhesive to CAVITY ACOUSTIC BAFFLE (1).

Fig 14: Identifying Window Glass Adhesive Applying Area To Cavity Acoustic Baffle

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Place A-pillar/roof frame (1) in outer A-pillar (2) and adapt.

Weld both parts in areas (3).

Fig 15: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.
