41 34 041 Replacing Tail Panel

Read contents of BODY, GENERAL  and observe relevant procedures.

STRIP DOWN  vehicle.

Observe REPAIR STAGE 2 .

Following new body parts are required:

1. Rear trim, complete
   Fig 1: Identifying Rear Trim, Complete

   Courtesy of BMW OF NORTH AMERICA, INC.

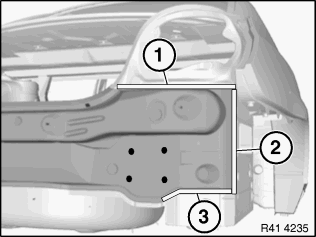

Removing tail panel:

Open weld joints in area (1).

Open brazed joints in areas (2).

Remove tail panel.

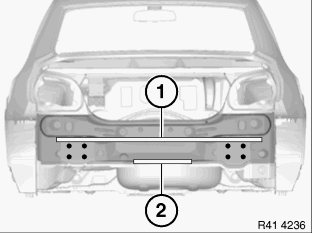

Fig 2: Identifying Brazed Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Slide in rear trim panel (1) from bottom upwards. Adjust in combination with tailgate and rear lights to fit and secure.

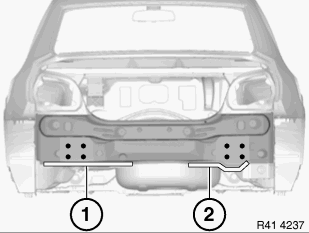

Fig 3: Sliding In Rear Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1 and 2) set 4.2 mm dia. bore holes for blind rivets:

Area (1): 2 bore holes

Area (2): 3 bore holes

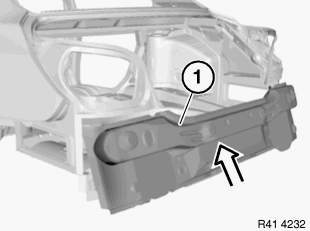

Fig 4: Identifying Bore Hole Areas (Left Side)

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1 to 3) set 4.2 mm dia. bore holes for blind rivets:

Area (1): 2 bore holes

Area (2): 3 bore holes

Area (3): 1 bore hole

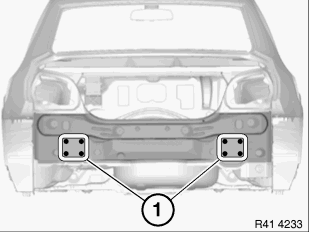

Fig 5: Identifying Bore Hole Areas (Right Side)

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1 and 2) set 4.2 mm dia. bore holes for blind rivets:

Area (1): 7 bore holes

Area (2): 1 bore hole

Remove new part and deburr holes.

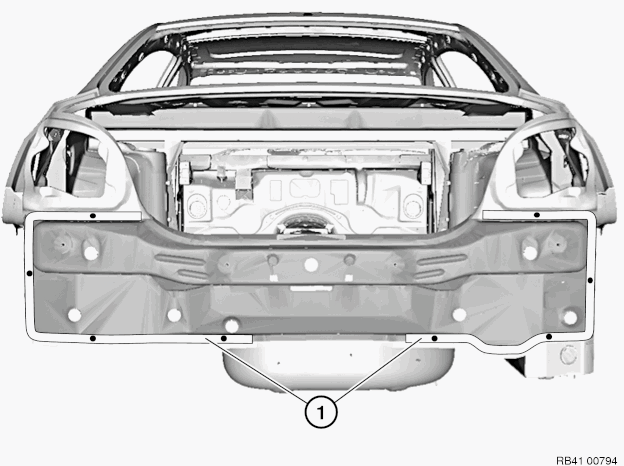

Fig 6: Identifying Bore Hole Areas (Center)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing tail panel:

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Slide in rear trim panel (1) from bottom upwards.

In so doing, pay attention to adhesive.

Rivet rear trim panel with blind rivets.

Fig 7: Sliding In Rear Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set 6 punch rivets N4.

In area (2) set 4 punch rivets N4.

Fig 8: Identifying Punch Rivet Locations

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear trim panel in area (1) and remove emerging adhesive.

Then mount support for bumper panel in order to secure rear trim panel in area (1).

Spread emerging adhesive on all adhesive areas. Remove excess adhesive.

Seal adhesive areas and blind rivets with sealant.

Fig 9: Pressing Rear Trim Panel In Area (1)

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive in areas shown (1), install 8 EMC SCREWS .
