41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Protection measures!

Wear safety goggles
Wear protective gloves

IMPORTANT: To prevent the material from tapering, do not drill out the rivet head.

Carefully spot-drill rivet head with a larger drill bit/countersink
IMPORTANT: Avoid paintwork damage

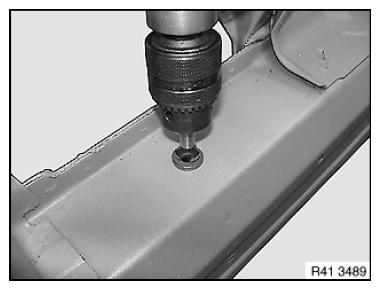

Fig 1: Spot-Drilling Rivet Head With Larger Drill Bit/Countersink

Courtesy of BMW OF NORTH AMERICA, INC.

Knock rivet head away with a chisel

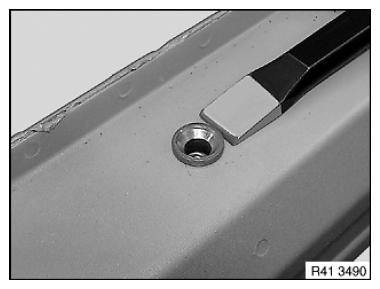

Fig 2: Knocking Rivet Head Away Using Chisel
Courtesy of BMW OF NORTH AMERICA, INC.
Punch through rivet shank into cavity, remove if necessary

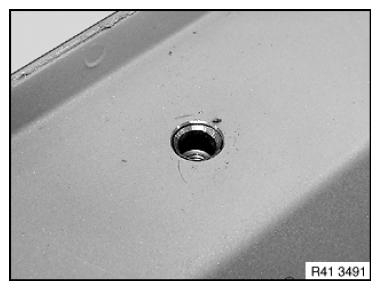

Fig 3: Identifying Rivet Shank Cavity
Courtesy of BMW OF NORTH AMERICA, INC.
Clean component, eliminate paintwork damage if necessary

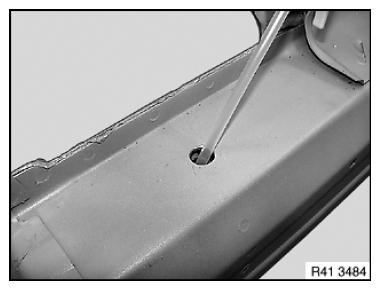

Fig 4: Identifying Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank can be removed:

IMPORTANT: To avoid corrosion, stop chips/debris by means of cavity sealing.
Follow NOTES ON CORROSION PROTECTION .
Preserving cavity

Fig 5: Preserving Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank cannot be removed:

WARNING: Risk of injury!
Observe NOTES ON CAVITY FOAM .

IMPORTANT: To avoid corrosion and rattling noises, stop chips/debris and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (benzine).

5. Stop rivet shank by means of specific foaming
6. Set rivet nut with hand rivet gun
NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

Fig 6: Preserving Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

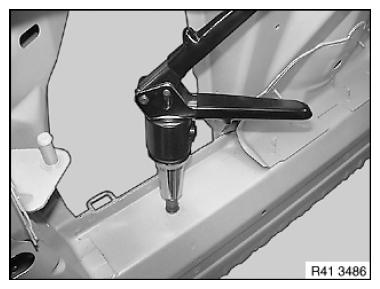

Fig 7: Setting Rivet Nut Using Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M8 thread.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

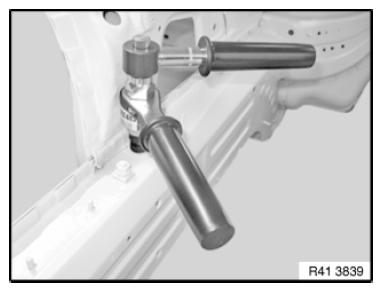

Fig 8: Setting Rivet Nut With Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M12 thread.
