65 13 160 Removing and installing/replacing rear left or right speaker carrier (D-pillar)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for roof pillar at rear , see 51 43 259 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR ROOF PILLAR (D-PILLAR), LEFT OR RIGHT .

Release screws (1).

Remove speaker carrier and disconnect associated plug connection.

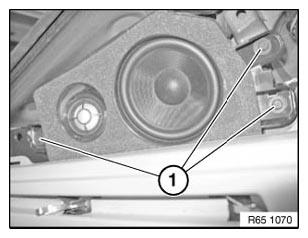

Fig 1: Identifying Associated Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove mid-range speaker , see 65 13 110 Removing and installing/replacing speaker (mid-range speaker in D-pillar) .
