65 12 071 Removing and installing or replacing amplifier
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
, see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
NOTE:
Comply with notes and instructions on handling optical waveguides.
, see 61 00... NOTES ON HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Disconnect battery negative lead , see 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- Remove flap in luggage compartment panel on left , see 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
NOTE:
For purposes of clarity, graphic shows luggage compartment side panel removed.

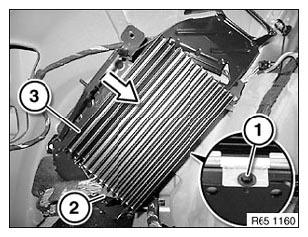

Release screw (1).
Disconnect plug connection (2) and slide amplifier (3) in direction of arrow out of mounting.
NOTE:
Until 09/2009 a Top Hifi amplifier with a different pin assignment is installed!
Install cable jumper consisting of socket (1) (BMW Parts Service 6901844) and wire jumper (2) in connector (3).
Create wire jumper (2) from wire (cross-section 0.75 mm) and two stops (BMW Parts Department 1393724). Then connect pins 1 and 2 in the socket (1) with wire jumper (2).
NOTE:
Connector chamber (4) is not included in current version and remains unused in new replacement Top HiFi amplifier!
Fig 2: Installing Cable Jumper Consisting Of Socket (BMW Parts Service 6901844) And Wire Jumper In Connector
Installation:

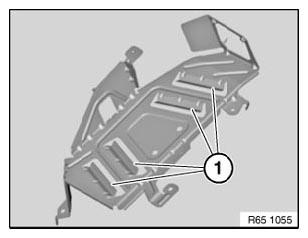

Lugs on amplifier must be correctly pushed into guides (1) on bracket.
Check that amplifier is firmly seated.
Replacement:
Carry out vehicle programming/coding.
