65 75 055 Removing and installing/replacing emergency power siren with tilt sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front left wheel arch trim , see 51 71 039 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (REAR SECTION) .

Release screws (1) and remove cover (2).

Installation:

Make sure rubber grommet (3) is correctly seated.

Fig 1: Identifying Rubber Grommet And Screws

G04792755

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove housing (2) and disconnect associated plug connection.

Fig 2: Identifying Housing And Plug Connection

G04792756

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release nut (1) and remove emergency power siren with tilt sensor (2).

Fig 3: Identifying Tilt Sensor And Nut

G04792757

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

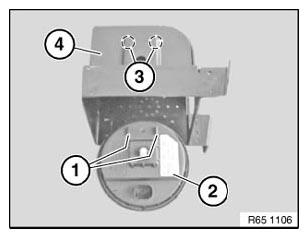

Guides (1) of emergency power siren (2) must be correctly seated in area (3) of holder (4)!

Fig 4: Identifying Emergency Power Siren, Holder And Guides

G06213901

Courtesy of BMW OF NORTH AMERICA, INC.
