65 77 532 Removing and installing/replacing front left sensor (acceleration sensor)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove grille in bumper trim on left, see 51 11 185 REMOVING AND INSTALLING/REPLACING GRILLE (SIDE) IN BUMPER TRIM .

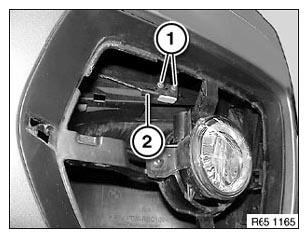

Release bolts (1).
Disconnect plug connection (2) and remove sensor.
Tightening torque 65 77 6AZ , see 65 77 AIRBAG TRIGGERING CONTROL .
Installation:
Replace screws (1).
Sensor surface of front left acceleration sensor must point downwards.
