64 11 906 Removing and installing/replacing ventilation temperature sensor (middle fresh-air grille)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove middle fresh-air grille, see 64 22 164 Removing and installing or replacing middle fresh-air grille .

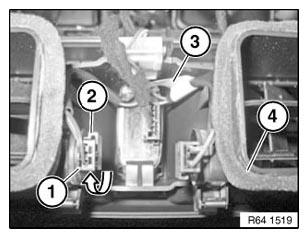

Disconnect plug connection (1).
Turn temperature sensor (2) in direction of arrow as far as it will go.
Remove temperature sensor (2) from middle fresh-air grille (4).
Installation:
On version with two temperature sensors, pay attention to lead identification (3):
- Always connect lead identification (3) on right from driver's viewpoint
Make sure temperature sensor (2) is correctly engaged in middle fresh-air grille (4).
