64 11 840 Replacing servodrive for left footwell flap
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove carrier, see 51 45 075 REMOVING AND INSTALLING CARRIER FOR INSTRUMENT PANEL .
- If necessary, remove left side section housing
- If necessary, remove air duct at side

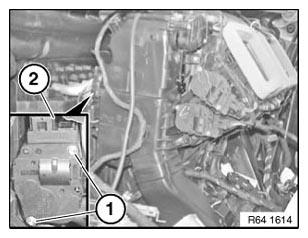

Release screws (1).
Disconnect plug connection (2) and remove servodrive.
