64 11 823 Replacing servodrive for right rear cabin air blending flap

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove servodrive for right footwell flap

Remove right side section housing (1).

Remove air duct (2).

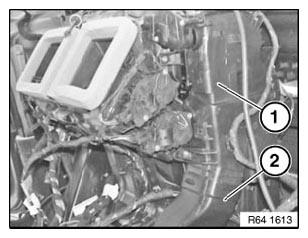

Fig 1: Identifying Right Side Section Housing And Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release screws (2) and remove servodrive (3).

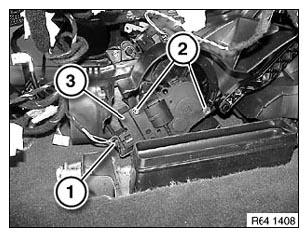

Fig 2: Identifying Servodrive And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
