64 52... Removing and installing compressor bearing block (N54, N55)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove compressor for A/C system, see 64 52... Instructions for compressor replacement .
IMPORTANT:
Different bolt lengths!

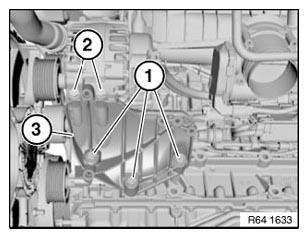

Release bolts (1).
Tightening torque 64 52 5AZ , see 64 52 A/C COMPRESSOR
Release bolts (2) and remove bearing block (3).
Tightening torque 64 52 5AZ , see 64 52 A/C COMPRESSOR
Installation:
Replace damaged adapter sleeves.
