64 12 673 Replacing left or right electric auxiliary heater - rear cabin

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move driver's seat into "front" and "top" position.

For purposes of clarity, pictures show driver's seat removed.

Remove speaker trim (1) and fold back floor carpet (2) in working area.

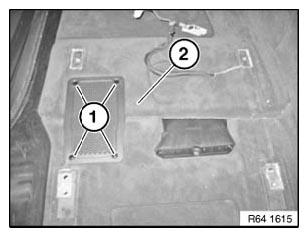

Fig 1: Identifying Back Floor Carpet And Speaker Trim

G06213753

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear cabin air duct (1) and disconnect plug connections (2).

Installation:

Ensure that air duct (1) is correctly seated.

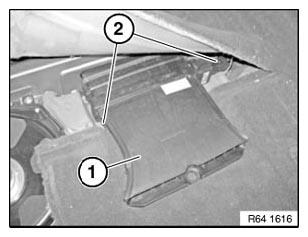

Fig 2: Identifying Rear Cabin Air Duct And Plug Connections

G06213754

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock electrical connection (1) and remove.

Unlock retaining tabs (2) on both sides from air duct and remove upper vent section (3).

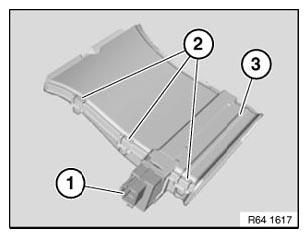

Fig 3: Identifying Electrical Connection And Retaining Tabs

G06213755

Courtesy of BMW OF NORTH AMERICA, INC.

Remove auxiliary heater (1) from lower vent section (2).

Installation:

Make sure auxiliary heater (1) is correctly seated in lower vent section (2).

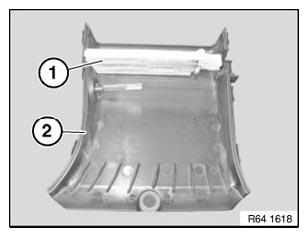

Fig 4: Identifying Auxiliary Heater And Lower Vent Section

G06213756

Courtesy of BMW OF NORTH AMERICA, INC.
