64 12 577 Replacing changeover valve for independent/auxiliary heater
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding!
Only perform the following tasks on an engine that has cooled down.
Follow instructions for working on cooling system , see 17 00 008 DRAINING AND ADDING COOLANT IN RADIATOR (N62TU, N63) and check for leaks, see 17 00 009 CHECKING COOLING SYSTEM FOR WATER LEAKS , or 17 00 005 DRAINING AND ADDING COOLANT (N54) , 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR WATER LEAKS (N54) .
Only perform the following tasks on an engine that has cooled down.
Follow instructions for working on cooling system , see 17 00 008 DRAINING AND ADDING COOLANT IN RADIATOR (N62TU, N63) and check for leaks, see 17 00 009 CHECKING COOLING SYSTEM FOR WATER LEAKS , or 17 00 005 DRAINING AND ADDING COOLANT (N54) , 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR WATER LEAKS (N54) .
NOTE:
Disconnect
coolant hoses from changeover valve for independent/auxiliary heater.
Necessary preliminary tasks:
- Remove FRONT LEFT WHEEL ARCH .
IMPORTANT:
Risk of damage!
Observe coolant throughflow direction, mark coolant hoses before removing.
Observe coolant throughflow direction, mark coolant hoses before removing.
NOTE:
If necessary, catch escaping coolant.

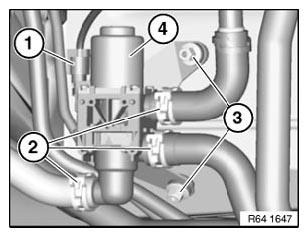

Disconnect plug connection (1).
Release spring clamps (2) and detach coolant hoses.
Release nuts (3) and remove changeover valve for independent/auxiliary heater (4).
After installation:
Vent cooling system and check for water leaks
