63 21 183 Removing and refitting/replacing left or right rear light as fitted from 03/2010 (on tailgate)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 318 .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection , see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) ).

Necessary preliminary tasks:

Remove luggage compartment light (on rear lid)

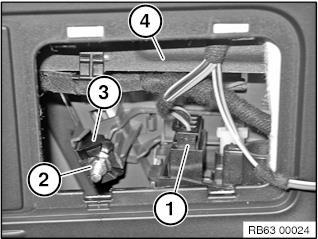

Unfasten plug connection (1) and disconnect. Slacken nut (2) until clamping claw (3) can be routed past tailgate (4). Tightening torque, see 63 21 3AZ in 63 21 REAR LIGHT UNIT . Installation note: Make sure clamping claw (3) is correctly seated on tailgate (4).

Fig 1: Unfasten Plug Connection (1) And Disconnect

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage! Tape off tailgate with suitable protective film (1).

Fig 2: Tape Off Tailgate With Suitable Protective Film (1)

Courtesy of BMW OF NORTH AMERICA, INC.

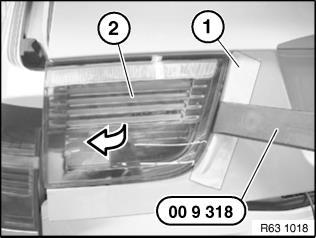

Lever out rear light (2) with special tool 00 9 318 in direction of arrow. Installation note: Make sure gap is uniform all round between rear light (2) and tailgate.

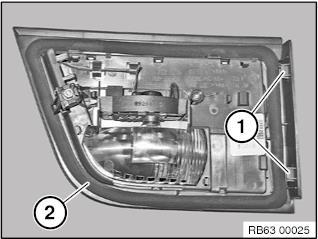

Installation note: Position tabs (1) of rear light exactly over side edge of tailgate. Make sure sealing frame (2) is correctly seated. If necessary, replace sealing frame (2).

Fig 3: Position Tabs (1) Of Rear Light Exactly Over Side Edge Of Tailgate

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: If necessary, remove bulbs.
