63 99 145 Replacing bulb for left (or right) side lights (xenon headlight)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by specialist personnel.
Follow instructions for handling light bulbs (exterior lights , see 63 99... Instructions for replacing light bulbs (interior lights) ).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by specialist personnel.
Follow instructions for handling light bulbs (exterior lights , see 63 99... Instructions for replacing light bulbs (interior lights) ).
Turn cover (1) in direction of arrow and remove from headlight.
Installation:
Make sure seal is correctly seated on cover (1) and cover (1) is correctly seated on headlight.

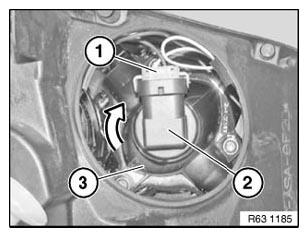

Turn bulb for side light (2) in direction of arrow and remove from headlight (3).
Disconnect plug connection (1) and remove side light bulb (2).
Installation:
Make sure bulb for side light (2) is correctly seated and engaged on headlight (3).
Note type of bulb , see 63 12 HEADLIGHTS, HEADLIGHT ASSEMBLY E71 .
