63 10 014 Adjusting fog lights

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Comply with test preconditions for headlight adjustment  , see 63 10... Test requirements for headlight vertical aim adjustment .

Adjust fog lamp (1) by turning adjusting screw (2) with screwdriver (3).

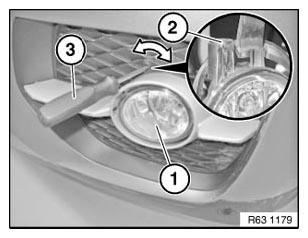

Fig 1: Identifying Fog Lamp And Adjusting Screw
G06213611Courtesy of BMW OF NORTH AMERICA, INC.
