63 31 193 Replacing LED for rear inside door opener
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear door trim , see 51 42 000 REMOVING AND INSTALLING (REPLACING) REAR LEFT OR RIGHT DOOR TRIM PANEL .

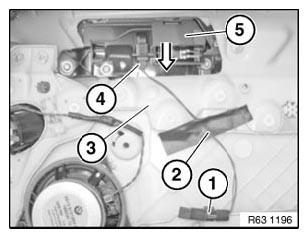

Detach wiring harness holder (1) and insulating tape (2) from door trim panel (3).
Unclip LED for inside door opener (4) in direction of arrow from door opener (5) and remove.
Installation:
Make sure LED for inside door opener (4) is correctly seated on door opener (5).
