63 31 003 Removing and installing/replacing complete ceiling light (rear)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317 , see 00 9 317 TRIM PANEL WEDGE .

IMPORTANT: Follow instructions for handling light bulbs (interior lights , see 63 99... Instructions for replacing light bulbs (interior lights) ).

IMPORTANT: Ceiling light (2) and roofliner (3) must not be damaged.

Carefully release retaining clips (1) with special tool 00 9 317 and lever ceiling light (2) in direction of arrow out of roofliner (3).

Disconnect associated plug connection and remove roof light (2).

Installation:

Retaining clips (1) and guides (4) must not be damaged or missing.

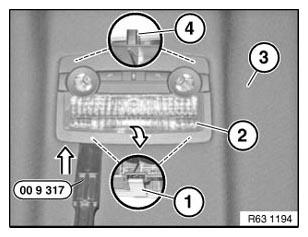

Fig 1: Removing Roof Light, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove bulbs , see 63 99 432 Replacing light bulb(s) for ceiling light (rear) .
