54 12 497 Removing and installing/replacing draft deflector for glass slide/tilt sunroof
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Open glass sunroof lid.
Lever out springs (1) on left/right.
Pull draft deflector (2) towards rear out of mounting (3).
Installation:
Carry out function check.
Installation:
Insert retaining pins (1) of draft deflector (2) into mountings (4).
Spring (3) must snap into place correctly.

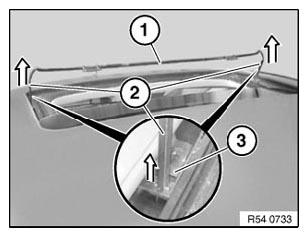

Position draft deflector (1) vertically and pull together with levers (2) on left/right upwards out of mounts (3).
Installation:
Turn lever (1) until lock (3) is flush with opening (2) and feed lever (1) out of draft deflector (4).
