52 16 405 Replacing backrest cover for left or right front seat

Special tools required:

• 00 9 317  , see 00 9 317 TRIM PANEL WEDGE .
• 52 0 050  , see 52 0 050 PLIERS .

Necessary preliminary tasks:

• Remove front seat  , see 52 14 000 Removing and installing left or right front seat .
• Remove rear panel  on front seat backrest, see 52 14 198 Removing and installing or replacing rear panel on left or right front seat backrest .

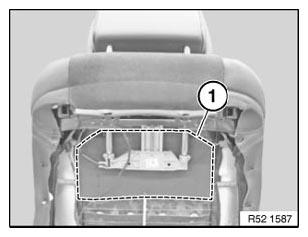

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

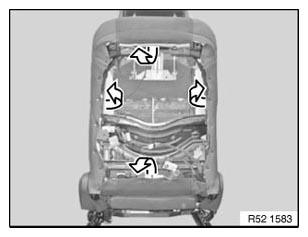

Release all retainers from cover (1).

Installation:

Bend new retainers closed with pliers 52 0 050  .

Remove cover (1).

Fig 2: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

For A/C optional extra only:

Loosen retainers (1).

Installation:

Bend new retainers closed with pliers 52 0 050  .

Unlock plug connections (2) and disconnect.

Fig 3: Identifying Plug Connections And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover all round from backrest frame.

Fig 4: Detaching Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook backrest cover (1) at bottom and sides towards front.

Pull off backrest cover (1) with padding towards top from backrest frame (2).

Fig 5: Pulling Off Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers.

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

Fig 6: Removing Clips From Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new retainer (2) closed with pliers 52 0 050  .

1. Padding
2. Retainer
3. Trim wire in padding
4. Trim wire in backrest cover
5. Backrest cover

Fig 7: Bending Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim threads (1) from backrest cover.

1. (2) Seat heater cable

Installation:

Push trim threads (1) into new backrest cover.

If necessary, cut into new component.

Fig 8: Identifying Trim Threads

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out locking strip of head restraint guide with special tool 00 9 317  .

Installation:

Mount straight front face of head restraint guide towards front.

Fig 9: Levering Out Locking Strip Of Head Restraint Guide Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
