51 13 280 Removing and installing/replacing trim strip on roof frame at left or right: Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Moisten seals (1) with water and slide into trim strip (3).

Fit end pieces (2) at front and rear.

Fig 1: Identifying Moisten Seals And End Pieces
G04788427Courtesy of BMW OF NORTH AMERICA, INC.

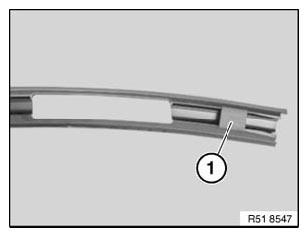

Modify support element (1) on front trim strip.

Fig 1: Identifying Modify Support Element
G06212450Courtesy of BMW OF NORTH AMERICA, INC.
